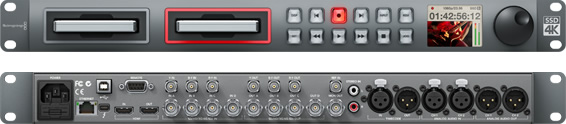

Blackmagic HyperDeck Studio Pro เครื่องบันทึกวิดีโอ HD ทั้ง Digital & Analog

  Blackmagicdesign HyperDeck Studio Pro

        HyperDeck Studio Pro records 4:2:2 SD/HD in full uncompressed quality plus Ultra HD in ProRes. Use ProRes 422 (HQ) or DNxHD compression for high quality HD video in file sizes that provide 5 times longer recording than uncompressed. For even longer recording use ProRes 422, ProRes 422 (LT) and ProRes 422 (Proxy). HyperDeck Studio Pro features 6G-SDI, HDMI 4K and analog component connections, plus professional XLR audio and built in Thunderbolt connectivity. It includes a built in power supply for convenience and the 1 rack unit size fits easily into any studio or portable rack.

Tech Spec

SDI Video Input : 3 x 10-bit SD/HD/3G switchable.

                            : 1 x 6G-SDI switchable.

SDI Video Output : 3 x 10-bit SD/HD/3G/6G-SDI switchable.

                           : 1 x 6G-SDI switchable.
                           : 1 x 10-bit SD/HD/3G-SDI switchable Monitor Output.

Analog Video Input : 1 x Component YUV on 3 BNCs, supports HD and SD.

Analog Video Output : 1 x Component YUV on 3 BNCs, supports HD and SD.

HDMI Video Input : 1 x HDMI type A connector including Ultra HD 4K support

HDMI Video Output : 1 x HDMI type A connector including Ultra HD 4K support

Analog Audio Input : 2 x XLR connectors for professional balanced analog audio.

                                 : 2 x RCA connectors for unbalanced analog audio from consumer equipment.

Analog Audio Output : 2 x XLR connectors for professional balanced analog audio.

SD Format Support

625/25 PAL and 525/29.97 NTSC. 480p60 and 576p50 via HDMI only.

HD Format Support

720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30.

4K Format Support

3840x2160p23.98, 3840x2160p24, 3840x2160p25, 3840x2160p29.97, 3840x2160p30.
