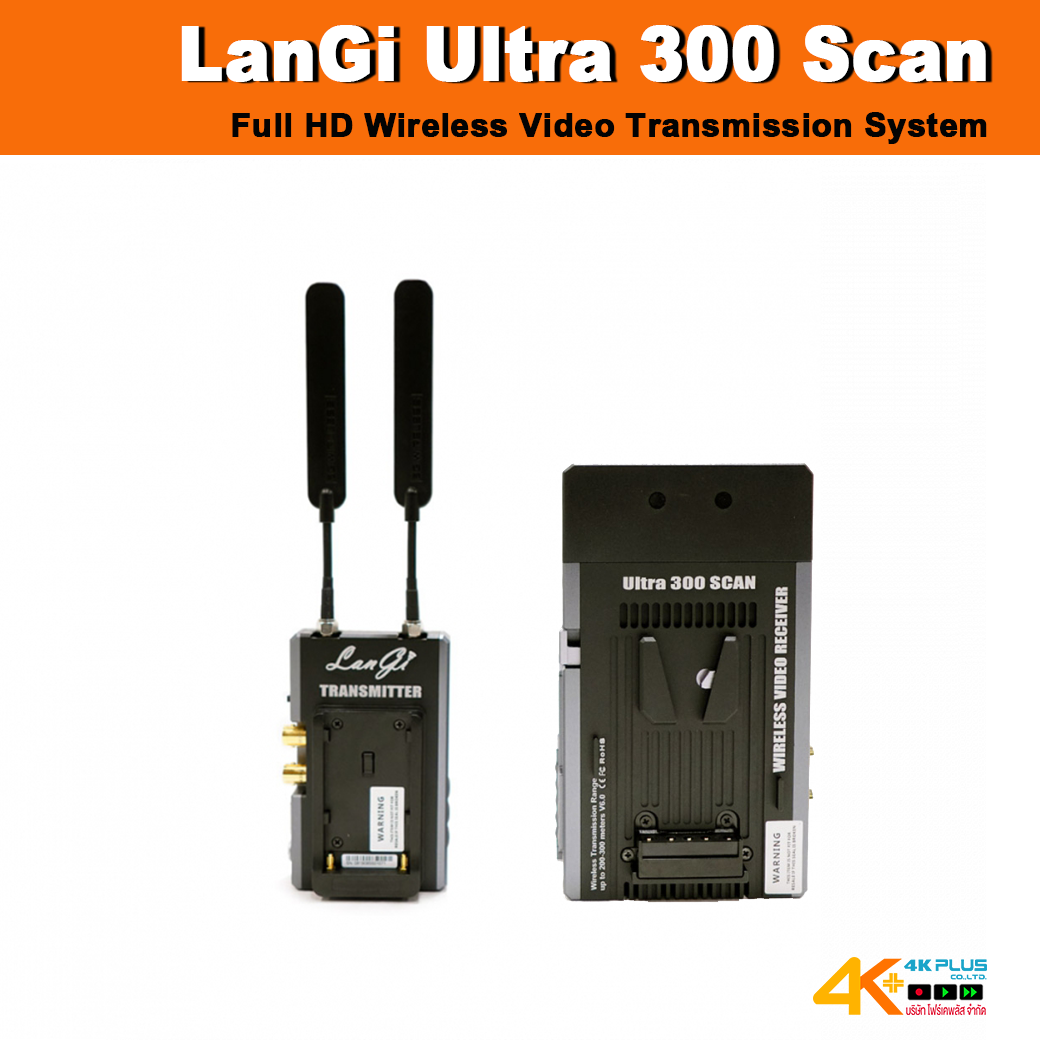

LanGi Ultra 300 Scan Wireless Video Transmitter

Wireless                           Non-DFS Frequencies 5.1-5.9(GHz)  Channel 0-9

Bandwidth                         40MHz

Support Resolution       1080p 23.98/24/25/30/50/60

                                             1080i 50/59.94/60

                                             720p 50/59.94/60

                                             576p 576i 480p 480i

Audio Compression         48kHz 24-bit  PCM

Color Sampling SDI：   YCbCr  4:2:2 , 10-bit

                                             HDMI: RGB 4:4:4, 8bit

Latency                              <0.001 Second

Video Procession            No Compression. Visually Lossless

Encryption                        AES-128

Unicast/Multicast           Unicast Multicast

Rejection                          Can Coexist with Wi-Fi and 5GHz Cordless Phones

Range                                  Up to 300m Line of Sight

Transmitter

Antenna                                     External Antenna (5dbi) x 2 pcs

RF Power                                   18dbm EIRP（Effective Isotropic Radiated Power）

Interface                                     HDMI Input; SDI Input; SDI Loop Output; Mini USB;
                                                      LEMO Power IN; Antenna RPSMA Socket; Power On/Off

Mountable                                 1/4” Threaded Mounting Hole

Screen Display                           Channel info；SDI/HDMI Video Format；Power info; Fan status; OSD info etc.

Power Input                               2-pin Connector 9V-18V VDC

Dimensions                                73 x 120 x 21 mm

Weight                                         281g

Power Consumption                 Nominal 8W (Measured at 1080P60)

Operating Temperature          -10~60℃(operating) 10%-90% humidity; -40~80℃
                                                      (storage) 10%-90% humidity.

Receiver

Antenna                                      Internal 5G Antenna (3dbi) x 5 pcs

Receiveing Sensitivity               -70dbm

Interface                                     SDI Dual Output; HDMI Output; Mini USB; LEMO Power IN; Power On/Off

Mountable                                 1/4” Threaded Mounting Hole

Screen Display                          Channel Info；Signal Strength；Power Info；Fan Status etc.

Power Input                               2-pin Connector 9V-18V VDC

Dimensions                               100 x 176 x 22.5 mm

Weight                                        498g

Power Consumption                Nominal 9W (Measured at 1080P60)

Operating Temperature          -10~60℃(operating) 10%-90% humidity; -40~80℃(storage)
                                                      10%-90% humidity.
