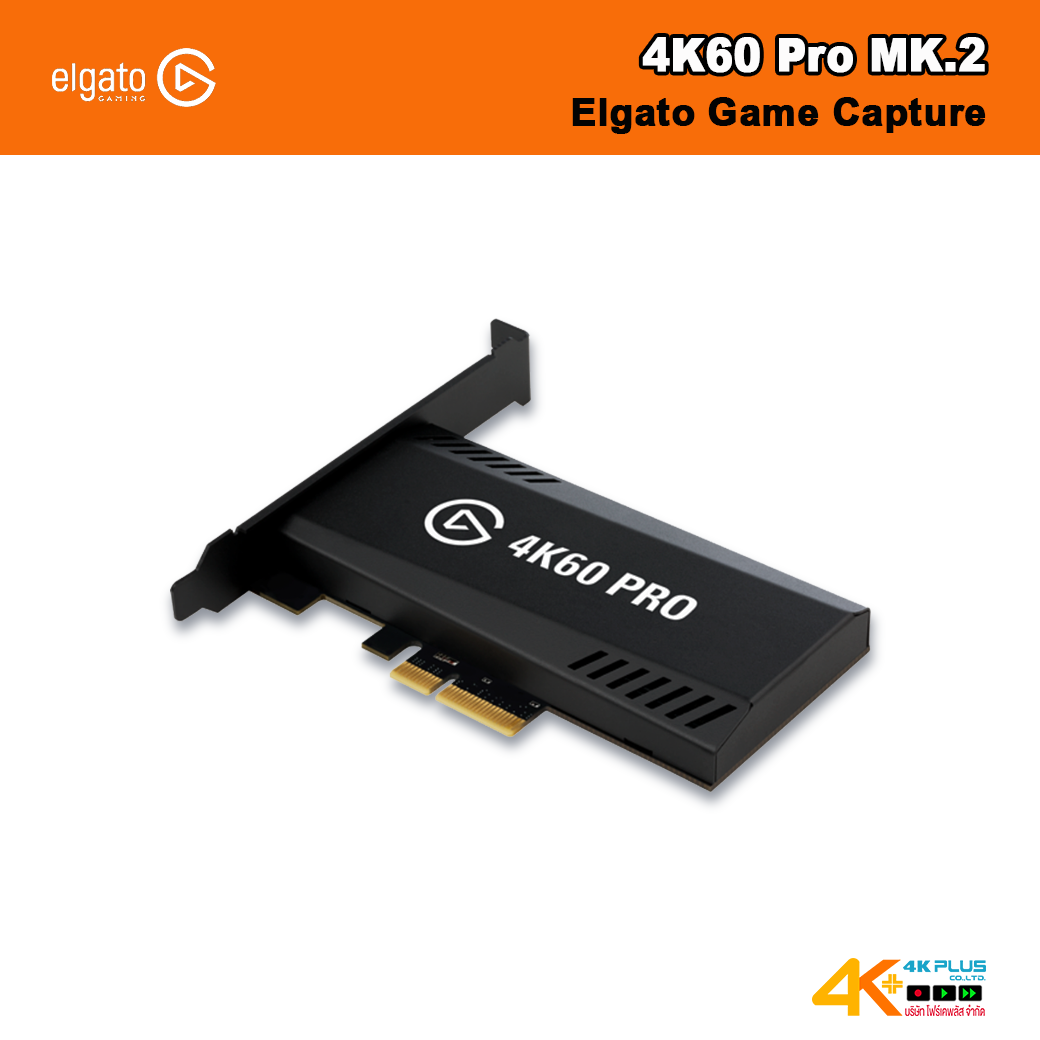

Elgato Game Capture 4K60 Pro MK. 2
Tech Specs

Here are the Technical Specifications for Elgato Game Capture 4K60 Pro MK. 2.


Interface:

PCIe x4


Input:

PlayStation 4, PlayStation 4 Pro, Xbox One, Xbox One S, Xbox One X, unencrypted HDMI


Output:

HDMI (lag-free pass-through)


Supported Resolutions:

Up to 2160p60 (4K)

Encoding:

HEVC/H.265 HDR

AVC/H.264


Bracket:

High and Low Bracket Included


Requirements:

• Windows 10 (64-bit)
• 6th generation Intel Core i7 CPU (i7-6xxx) or AMD Ryzen 7 (or better)
• NVIDIA GeForece GTX 10xx
• PCIe 2.0 or higher x4/x8/x16 slot

Differences Between The Two Models

• The suggested retail price is less.

• The case is smaller.

• It can use Low and High Profile brackets (included).

• It can record in HDR.

• It can tone-map HDR to SDR video on the device.

• It offers multi-application access.  For example, you can stream in OBS while recording in Elgato 4K Capture Utility.

Resolutions and Frame Rates

Elgato Game Capture 4K60 Pro MK.2 supports many different resolutions and frame rates between 1080p and 2160p (4K).  We have tested the common resolutions, but not every possible resolution and frame rate combination.

Here are some of the more common resolutions and frame rates that are supported:

480p (up to 60 fps) NTSC
720 by 480 resolution

576i (up to 60 fps) PAL
720 by 576 resolution

576p (up to 60 fps) PAL
720 by 576 resolution

720p (up to 60 fps)
1280 by 720 resolution

1080i (up to 60 fps)
1920 by 1080 resolution

1080p (up to 60 fps)
1920 by 1080 resolution

1440p (up to 60 fps)
2560 by 1440 resolution

2160p (up to 60 fps)
3840 by 2160 resolution

If you are trying a resolution or frame rate that isn't working, either via passthrough or recording, please contact our support team. We will be able to test those settings internally.



High Frame Rate Support - 144Hz, etc



Elgato Game Capture 4K60 Pro MK.2 is capable of passthrough as well as capture of formats such as 1440p 144 Hz.

These formats however do not have industry standard timings, and as such, may not work perfectly. In rare cases, using a custom or edited EDID may be needed.

If you have a high refresh rate display and Elgato Game Capture 4K60 Pro MK.2 is not properly passing through the signal or capturing, please contact our Technical Support team.



Pixel Clock Support - Up to 600 Mhz

Elgato Game Capture 4K60 Pro MK.2 supports signals over HDMI 2.0 up to 600 Mhz pixel clock.

You can manually calculate the pixel clock of the resolution and frame rate, to see if it will work with
Elgato Game Capture 4K60 Pro MK.2

Please Note: Even if the pixel clock is below 600 Mhz, we are not guaranteeing that particular resolution and frame rate combination will work with Elgato Game Capture 4K60 Pro MK.2.
