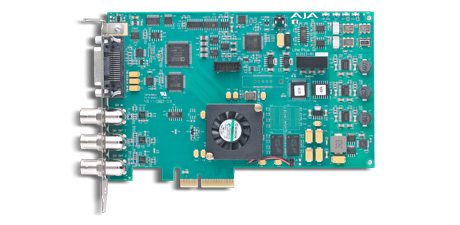

AJA LHe Plus PCIe Card

AJA KONA LHe Plus

 Powerful video and audio I/O with a full set of no-compromise features for video professionals. KONA LHe Plus supports both HD/SD analog and digital I/O for video and audio.

 Tech Specs

Video Formats

• 525i 29.97
• 625i 25
• 720P 50, 59.94, 60
• 1080i 25, 29.97, 30
• 1080PsF 23.98, 24, 25, 29.97, 30
• 1080p 23.98, 24, 25, 29.97, 30

Video Input Digital

• SD/HD SDI, SMPTE-259/292/296, 8- or 10-bits
• Single link 4:2:2 (1 x BNC)

Video Input Analog

• Composite/S-Video (Y/C) (1 x BNC/2x BNC+Adaptor)
• NTSC, NTSCJ, PAL
• Component (3 x BNC)
• HD: YPbPr, RGB
• SD: YPbPr, RGB (component mode)
• SMPTE/EBU N10, Betacam 525 line, Betacam 525J, RGB
• 12-bit A/D, 8x oversampling

Video Output Digital

• SD SDI, SMPTE-259M, 10-bit
• HD SDI, SMPTE-292/296, 10-bit

Video Output Analog

• Composite/S-Video (Y/C) (1 x BNC/2x BNC+Adaptor)
• NTSC, NTSCJ, PAL
• Component (3 x BNC)
• HD: YPbPr, RGB
• SD: YPbPr, RGB (component mode)
• SMPTE/EBU N10, Betacam 525 line, Betacam 525J, RGB
• 12-bit D/A, 8x oversampling

Audio Input Digital

• 8-channel, 24-bit SMPTE-259 SDI embedded audio, 48kHz sample rate, Synchronous
• 2-channel, 24-bit AES/EBU audio, 48kHz or 96 KHz sample rate, Synchronous or Non-synchronous, Internal sample rate conversion (via 1 x XLR on breakout cable or optional KL-Box)

Audio Input Analog

• 2-channel, 24-bit A/D analog audio, 48kHz sample rate, balanced (via 2 x XLR on breakout cable or optional KL-Box)
• +24dbu Full Scale Digital

Audio Output Digital

• 8-channel, 24-bit SMPTE-259 SDI embedded audio, 48kHz sample rate, Synchronous
• 2-channel, 24-bit AES/EBU audio, 48kHz or 96 KHz sample rate, Synchronous or Non-synchronous, Internal sample rate conversion (via 1 x XLR on breakout cable or optional KL-Box)

Audio Output Analog

• 2-channel, 24-bit D/A analog audio, 48kHz sample rate, balanced (via 2 x XLR on breakout cable or optional KL-Box)
• +24dbu Full Scale Digital (0dbFS)

Down-conversion

• Hardware 10-bit
• Anamorphic: full-screen
• Letterbox: image is reduced with black top and bottom added to image area with the aspect ratio preserved
• Crop: Crop: image is cropped to fit new screen size
