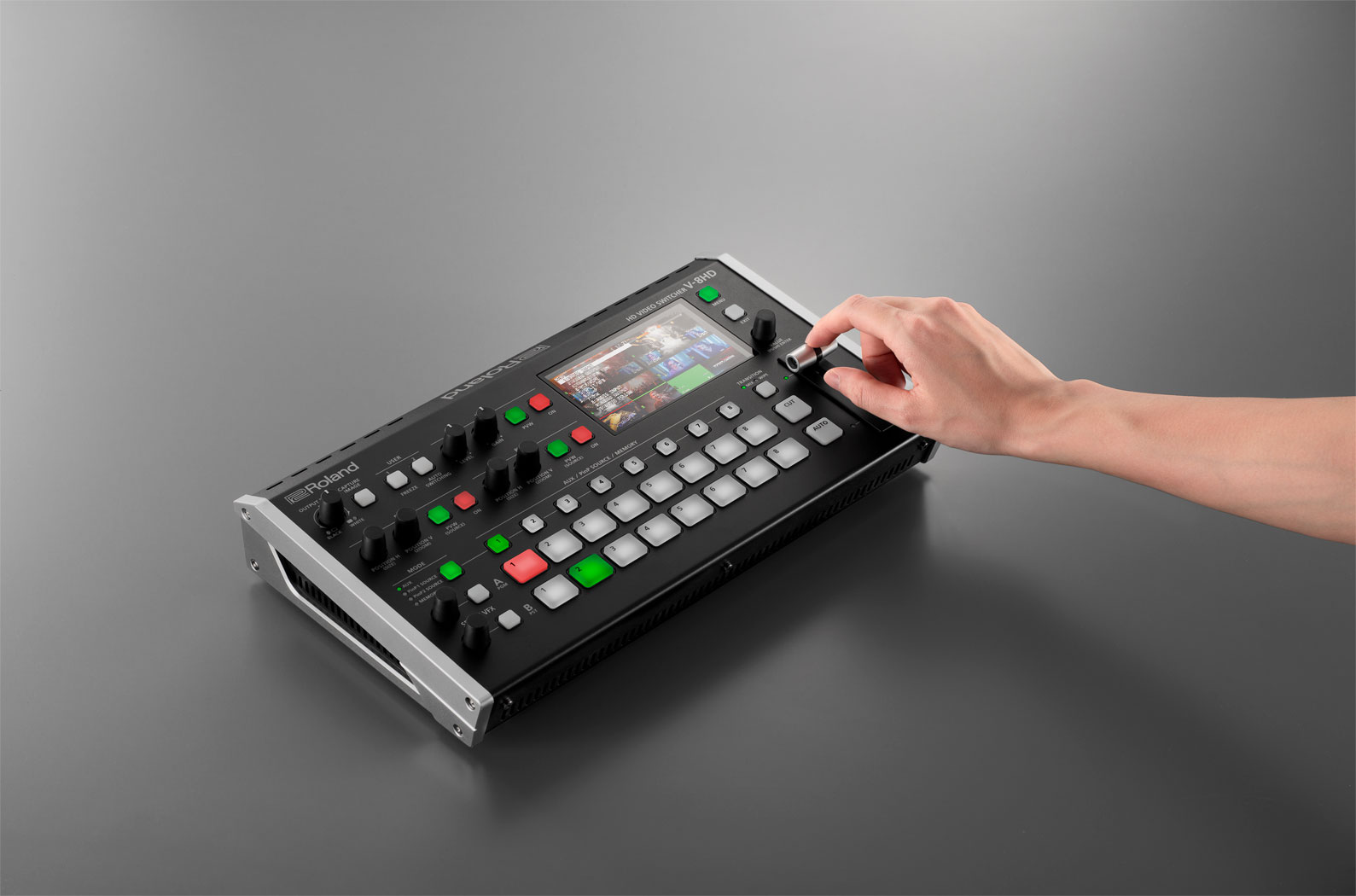

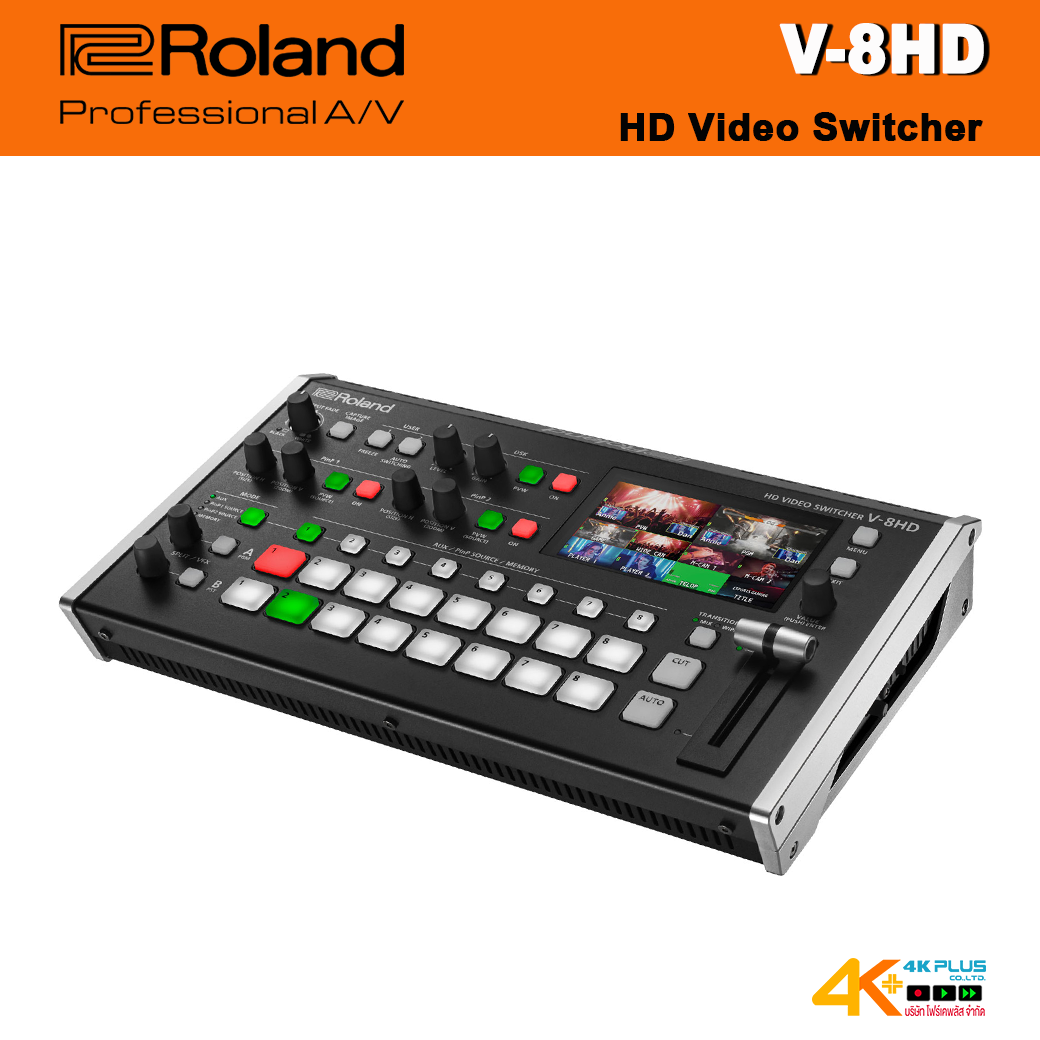

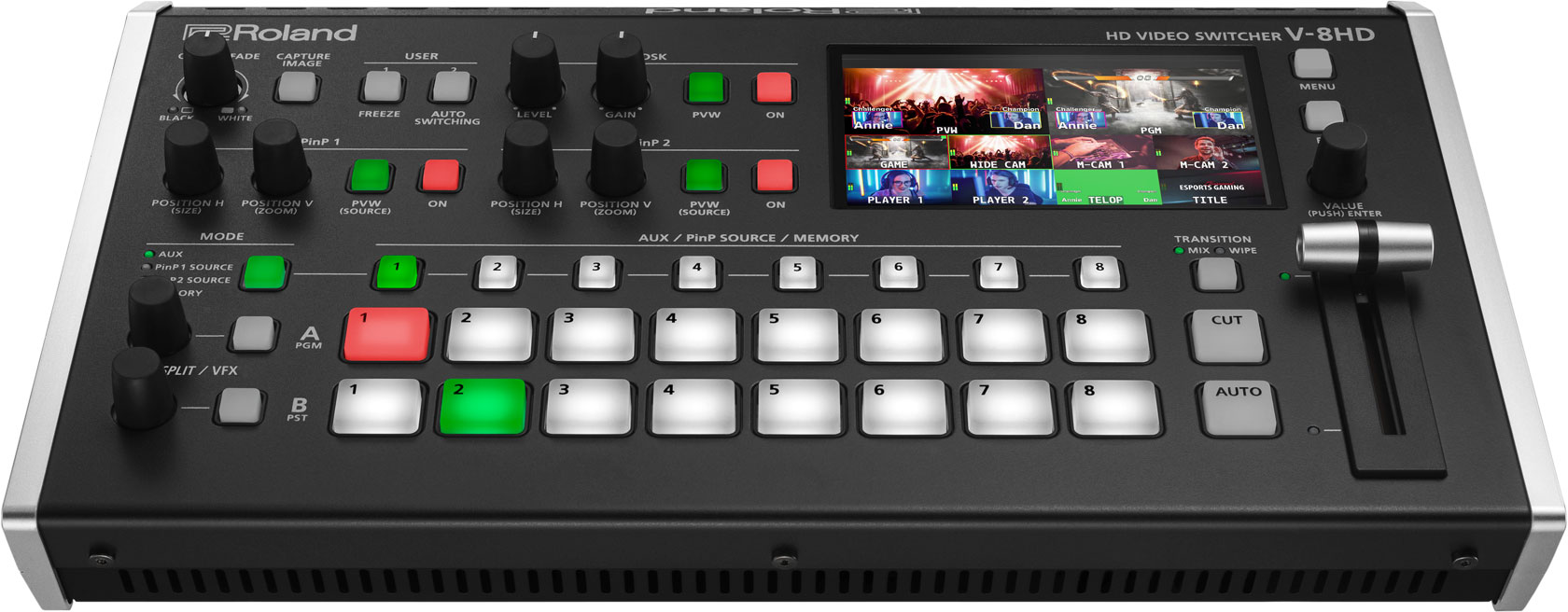

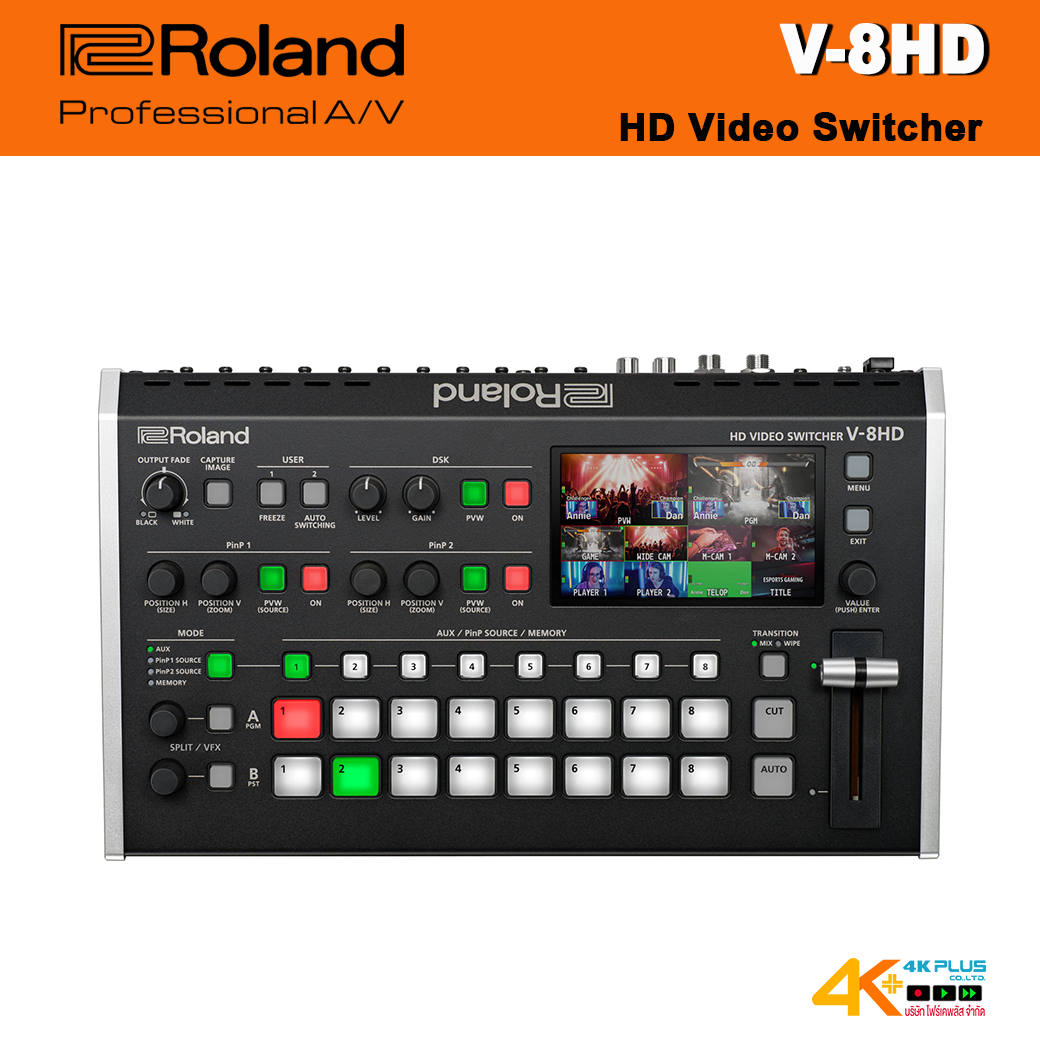

VIDEO

Video Processing

4:2:2 (Y/Pb/Pr), 8-bit

Input Connectors

INPUT 1--6: HDMI type A x 6
* HDCP Supported

INPUT 7--8: HDMI type A x 2
* HDCP Supported
* Multi-format Supported

Output Connectors

OUTPUT 1--3: HDMI type A x 3
* HDCP Supported

Supported Video Input Formats

INPUT 1-6
720/59.94p *1, *3
720/50p *1, *4
1080/59.94i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p *2, *3
1080/50i, 1080/50p, 1080/25p *2, *4
1080/23.98p, 1080/24p *2
* The input interlaced video signal is converted to progressive video signal by internal processing.
*1 SYSTEM FORMAT = 720p
*2 SYSTEM FORMAT = 1080i or 1080p
*3 FRAME RATE = 59.94 Hz
*4 FRAME RATE = 50 Hz

INPUT 7-8
480/59.94i, 480/59.94p, 720/59.94p, 1080/59.94i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p *1
576/50i, 576/50p, 720/50p, 1080/50i, 1080/50p, 1080/25p *2
1080/23.98p, 1080/24p
VGA (640×480/60Hz), SVGA (800×600/60Hz), XGA (1024×768/60Hz)
WXGA (1280×800/60Hz), SXGA (1280×1024/60Hz)
FWXGA (1366×768/60Hz), SXGA+ (1400×1050/60Hz)
UXGA (1600×1200/60Hz), WUXGA (1920×1200/60Hz)
* The refresh rate is the maximum value of each resolution.
* Conforms to CEA-861-E,VESA DMT Version 1.0 Revision 11.
* 1920 x 1200/60 Hz: Reduced blanking
* The input interlaced video signal is converted to progressive video signal by internal processing.
*1 FRAME RATE = 59.94 Hz
*2 FRAME RATE = 50 Hz

Still Image

Bitmap File (.bmp) Maximum 1920 x 1080 pixels, 24-bit color, uncompressed.
PNG File (.png) Maximum 1920 x 1080 pixels, 24-bit color
* It can be stored up to 8 files in the internal memory.
* PNG alpha channel not supported.

Supported Video Output Formats

OUTPUT 1-2:
720/59.94p *1, *4
720/50p *1, *5
1080/59.94i *2, *4
1080/50i *2, *5
1080/59.94p *3, *4
1080/50p *3, *5
*1 SYSTEM FORMAT = 720p
*2 SYSTEM FORMAT = 1080i
*3 SYSTEM FORMAT = 1080p
*4 FRAME RATE = 59.94 Hz
*5 FRAME RATE = 50 Hz

OUTPUT 3:
1080/59.94p *1
1080/50p *2
*1 FRAME RATE = 59.94 Hz
*2 FRAME RATE = 50 Hz

Video Effects

Transition: CUT, MIX (DISSOLVE/FAM/NAM), WIPE (8 types)
Composition: PinP x 2 (SQUARE, CIRCLE, DIAMOND), SPLIT (2 types), Keyer x 2 (Luminance Key, Chroma Key), DSK (Luminance Key, Chroma Key)
Others: Flip horizontal, Flip vertical, Still Image Capture, Still Image Playback, Output fade (Audio, Video: WHITE or BLACK), Test pattern output

AUDIO

Audio Processing

Sampling rate: 24 bits/48 kHz

Audio formats

Linear PCM, 24 bits/48 kHz, 2ch

Audio Effects

Delay, High pass filter, Compressor, Noise gate, Equalizer, Multi-band compressor, Limiter, Test tone output

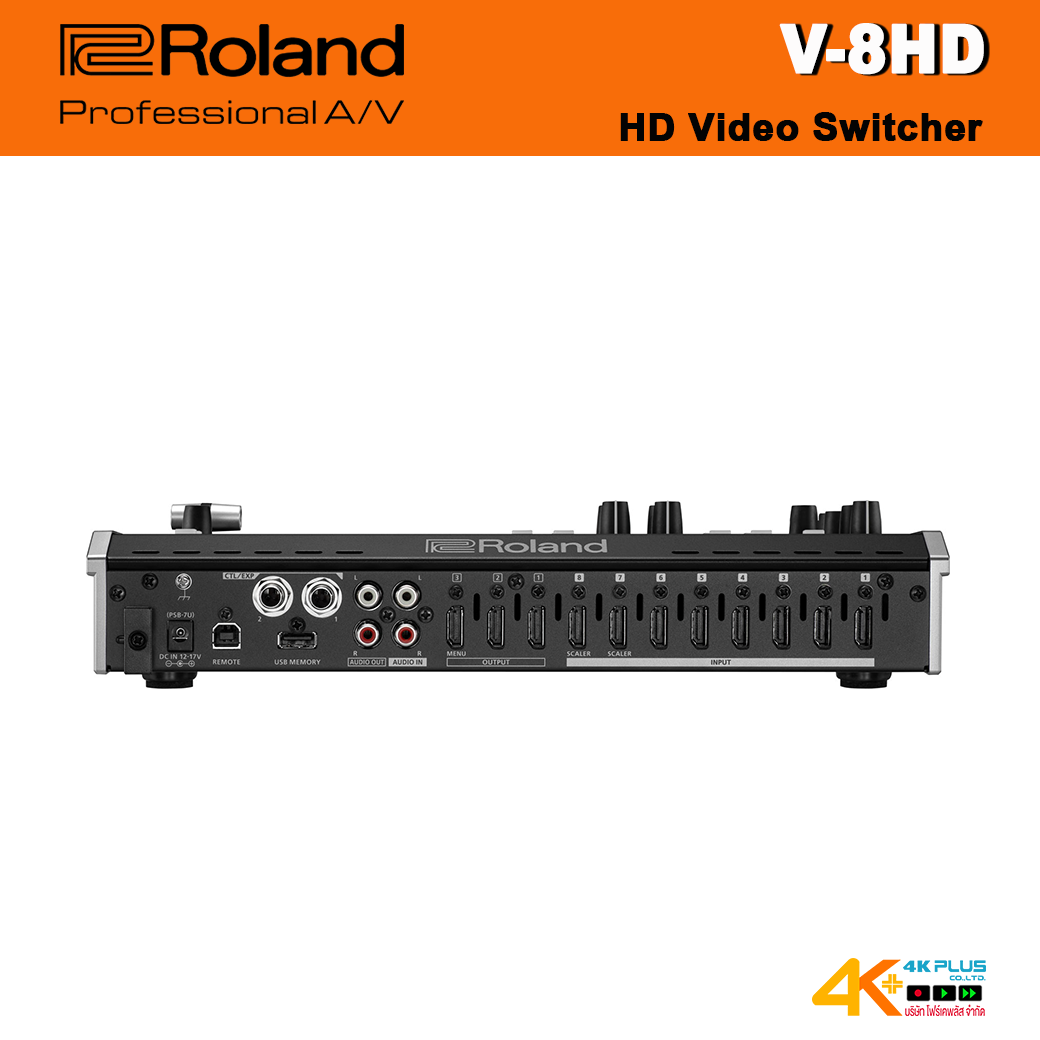

CONNECTORS

Input Connectors

INPUT 1--8: HDMI Type A x 8
AUDIO IN: RCA phono type

Output Connectors

OUTPUT 1--3: HDMI Type A x 3
AUDIO OUT: RCA phono type

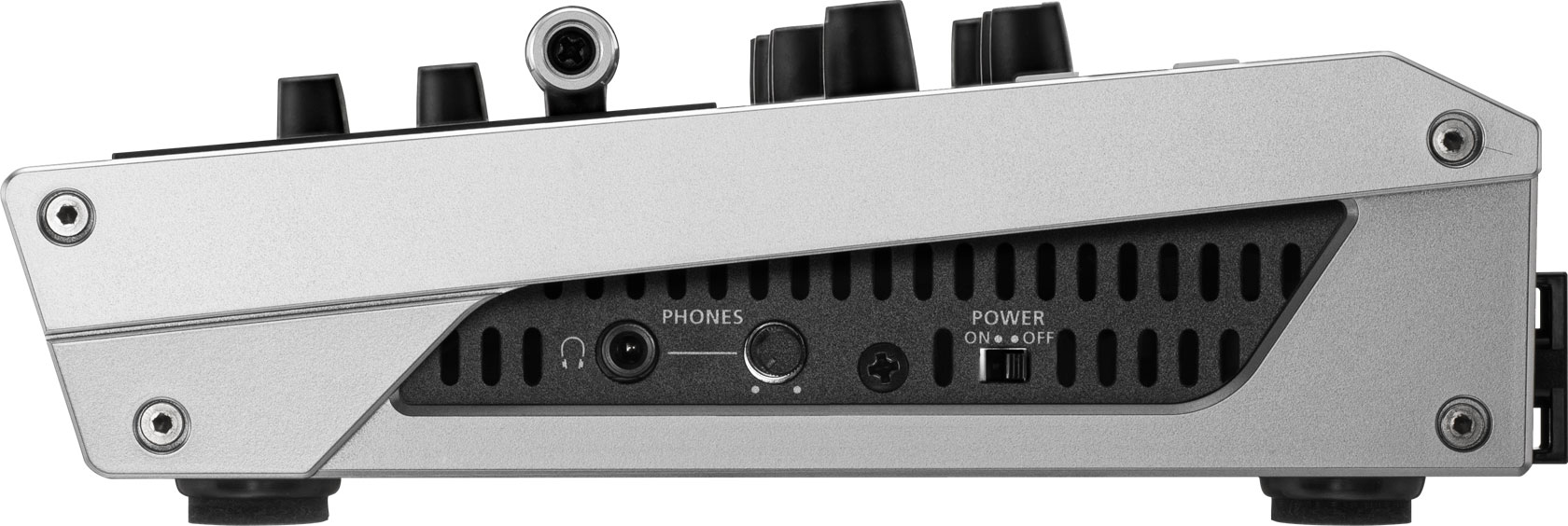

PHONES: Stereo miniature type

Other Connectors

USB MEMORY: USB A type (for USB flash drive)
REMOTE:USB B Type (for remote control from iPad)

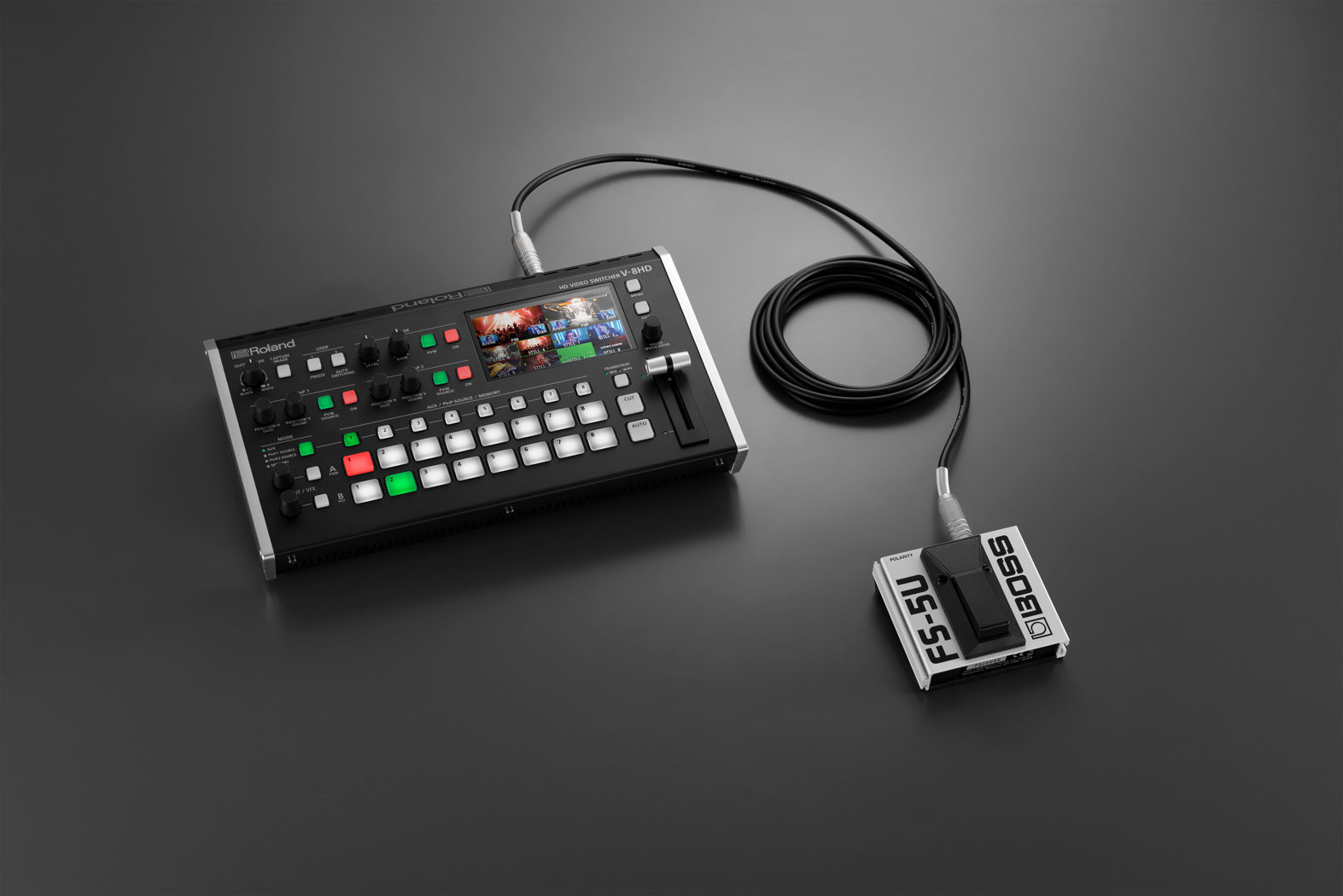

CTL/EXP:1/4-inch TRS phone type

Other Functions

Preset Memory (8 types)
Panel lock function
EDID Emulator
Auto Switching
Auto Input Detect

AUDIO INPUT/OUTPUT CHARACTERISTICS

Input Level

AUDIO IN: -10 dBu (Maximum: +8 dBu)

Input Impedance

AUDIO IN: 38 k ohms

Output Level

AUDIO OUT: -10 dBu (Maximum: +8 dBu)
PHONES: 92 mW + 92 mW (32 ohms)

Output Impedance

AUDIO OUT: 1 k ohm
PHONES: 10 ohms

OTHER

Display

4.3 inches TFT Color LCD: 480 x 272 dots

Power Supply

AC Adaptor

Current Draw

3.3 A

Power Consumption

39.6 W

Dimensions

317 (W) x 193 (D) x 70 (H) mm
12-1/2 (W) x 7-5/8 (D) x 2-13/16 (H) inches

Weight

2.0 kg
4 lbs 7 oz
* Excluding AC adaptor.

Operation Temperature

+0 to +40 degrees Celsius
+32 to +104 degrees Fahrenheit

Accessories

Owner's Manual
AC adaptor
Power cord

* 0 dBu = 0.775 Vrms
