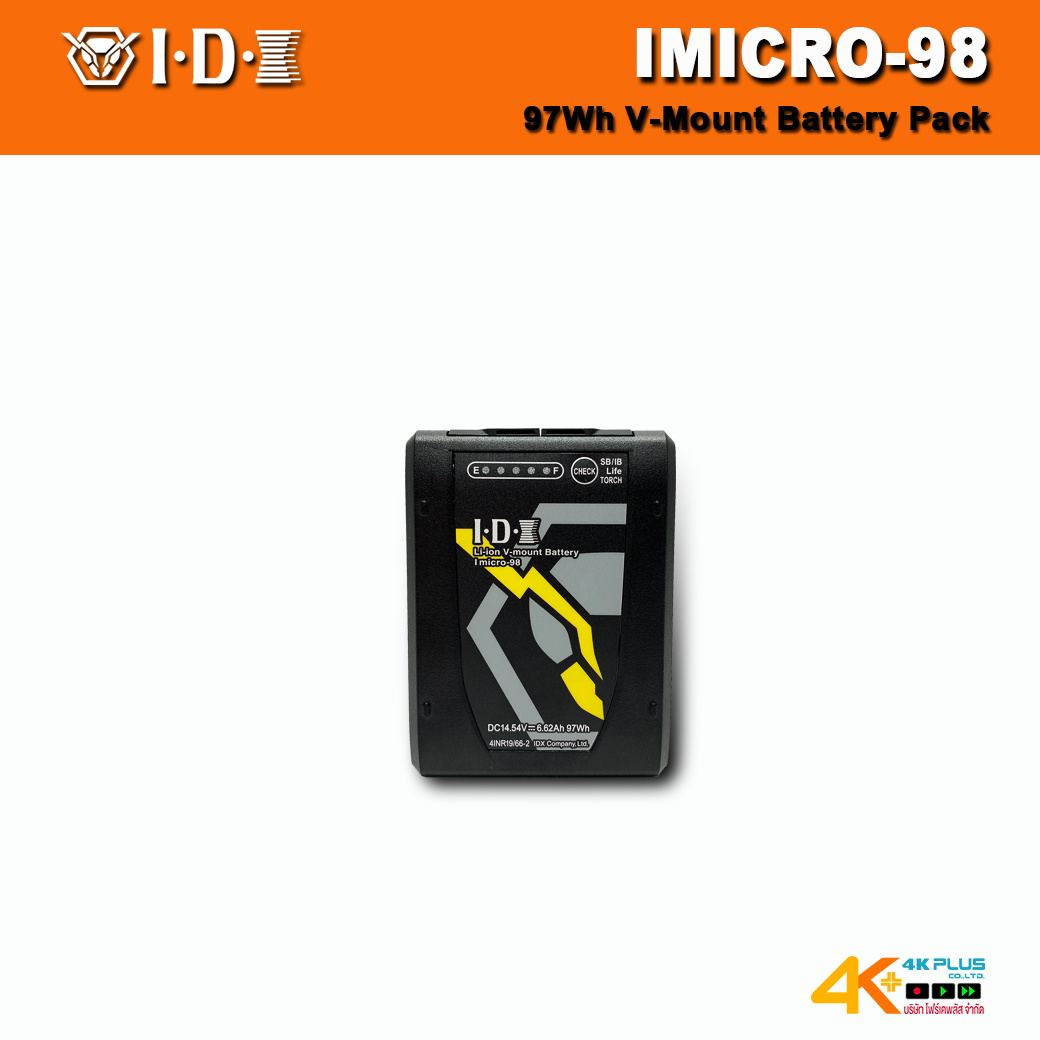

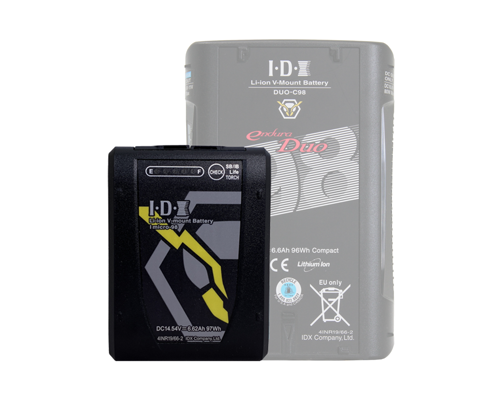

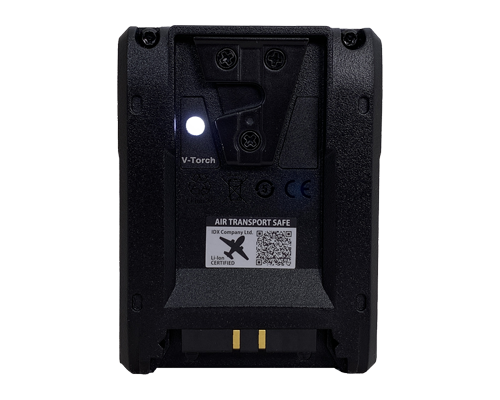

IDX iMicro-98 V-Mount Battery

• 97Wh capacity
• Meets passenger aircraft travel regulations
• Capable of handling up to 14A loads‡

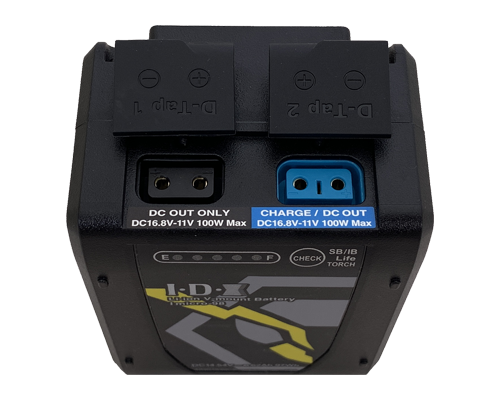

• (1) 100W D-Tap Advanced Output (unregulated) – D-Tap Output with the added ability to charge battery using low-cost D-Tap Charger (VL-DT1)
• (1) 100W D-Tap Output (unregulated)
• 5 Power Indicator LEDs (displaying 10% increments)
• Battery circuit protection ensures the Imicro-98 is fully protected against common causes of battery misuse, guarding against over charge, over discharge, over current and exposure to high temperatures
• The highest grade Lithium Ion cells are used to ensure the Imicro-98 is one of the most reliable batteries on the market
• 11V auto cut-off prevents over-discharging (while load is applied)
• Fully compatible with all ENDURA V-Mount Battery chargers and accessories.
• Environmentally friendly and recyclable

Tech Specs

Battery Capacity

97Wh (14.5V/ 6.6Ah)

Max.Output Voltage

16.8V DC

Nominal Voltage

14.5V DC

Maximum Discharge Current

14A‡

D-Tap

100W each

End Voltage

11V

Battery Protection

Over charge, Over discharge, Over current, Thermal protection

Ambient Temperature

To charge: 0°C ~ 40°C (10°C ~ 30°C recommended)

To discharge: -20°C ~ 45°C (10°C ~ 40°C recommended)

To store: -20°C ~ 50°C (less than 1 month)

Dimensions

72(W) x 97(H) x 51.5(D) mm
