Encoder for Live Streaming
จำหน่าย
ClearCaster Pro
Cloud-Based Management
Simplify your workflow with remote management, customizable encoding workflows, and user-permission control.
API Integrations
Create and streamline fully automated workflows with a centralized management API.
Adaptive Network Encoding
Increase reliability with adaptive network encoding, which automatically decreases bitrate in adverse conditions.
Real-Time Health Monitoring
Identify issues quickly with detailed monitoring metrics, from encoder health through first-mile network conditions.

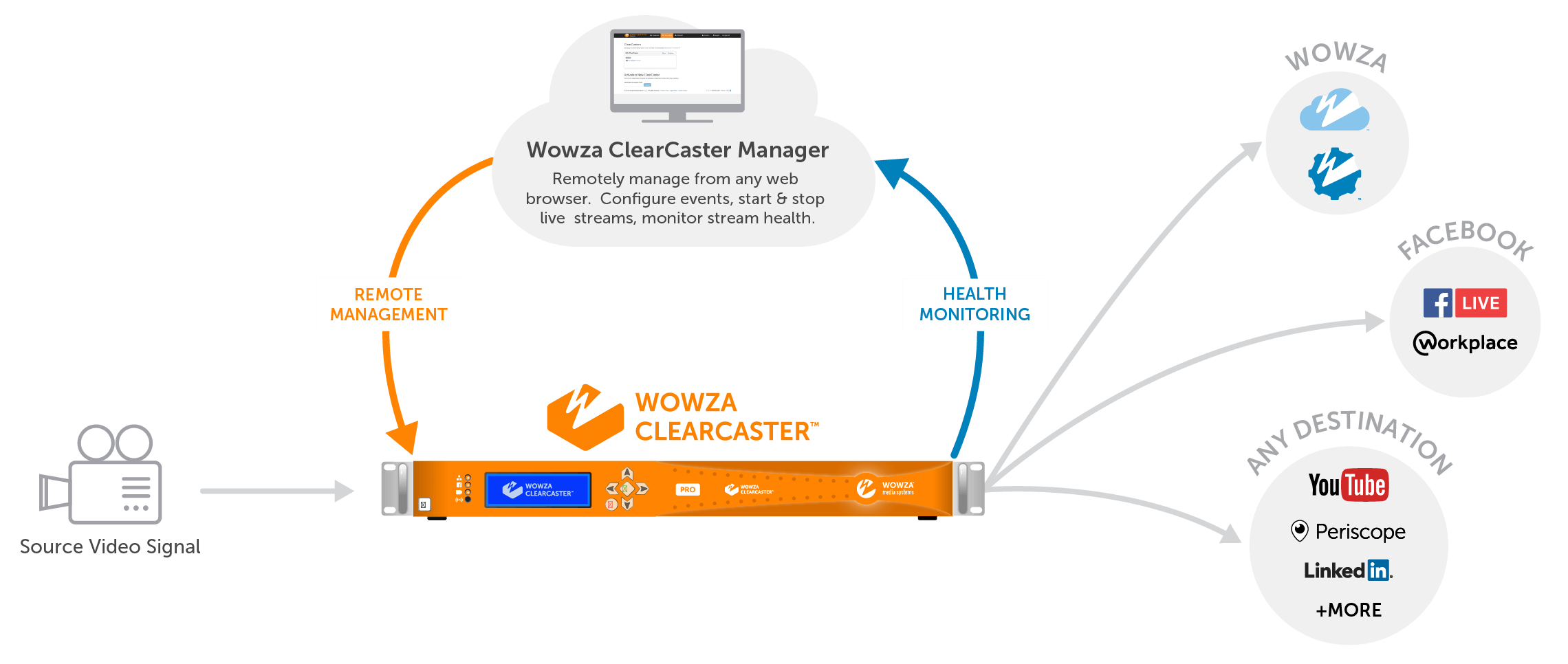

Cloud-Based Workflow Management
- Prevent configuration issues and streamline encoder setup and broadcast management by leveraging the power of the cloud to enable real-time encoder command and control.
- Build custom configuration templates, create streamlined broadcast workflows and tailor the web-based UI controls to meet the unique needs of your broadcast team.
API Integrations
- Create fully automated workflows using ClearCaster Pro's centralized management API.
- Broadcasters can integrate workflow automation for their entire encoding stack while service providers can gain control over on-premise contribution encoders to increase reliability and better support their end users.
Adaptive Network Encoding
- Enable the power of adaptive network encoding over RTMP to automatically recover from bandwidth issues.
- Constantly monitor low-level network metrics and performance, while automatically decreasing video streaming bitrate in adverse network conditions, ensuring broadcasts maintain smooth, buffer-free playback for end users.
Real-Time Health Monitoring
- Take the guesswork out of encoder delivery and issue-identification with 100-plus stream-health metrics collected in real time.
- Use the live and archived broadcast health metrics to quickly identify issues and maintain an audit trail over all broadcasts.
Tech Specs
A/V Inputs
Physical: 1 x 6G-SDI/HD/Ultra HD, BNC Input 1 x HDMI 2.0a, Input
IP: 1 x MPEG-TS (UDP, SRT); RTSP; RTMP
Input Resolutions and Frame Rates
4k 2160p30; De-interlacing support
Up to 1080i/p60 (lower framerates, resolutions support); scaling support
Codec Support
Video Inputs: AVC / h.264; Via IP input HEVC/h.265, MPEG-2 support
Video Outputs: AVC / h.264 ; HEVC/h.265
Audio Inputs: Embedded audio, Via IP input AAC, AC-3 (Dolby Digital), MPEG-1 layer 2, MP3 support
Audio Output: AAC
Captions
Embedded CEA-608/708 closed captions
Output Resolutions
Up to 4kp30; Encode up to 3 1080; full 1080 ABR ladder
Support for high framerate (up to 60 fps) at 1080 and lower resolutions
Controllable aspect ratio and frame rate; All outputs support multiple targets
Output Formats
RTMP / RTMPS; MPEG-TS (unicast, multicast); RTSP / RTMP / HLS via pull only; SRT
Recording
Fragmented MP4; Record multiple outputs; Store on appliance and in cloud
Network
1 GB Ethernet; DHCP Support; Manual Network Configurable
System Control
Cloud based Browser control and template management
Centralized API (GraphQL); User Management; Built in LCD Screen

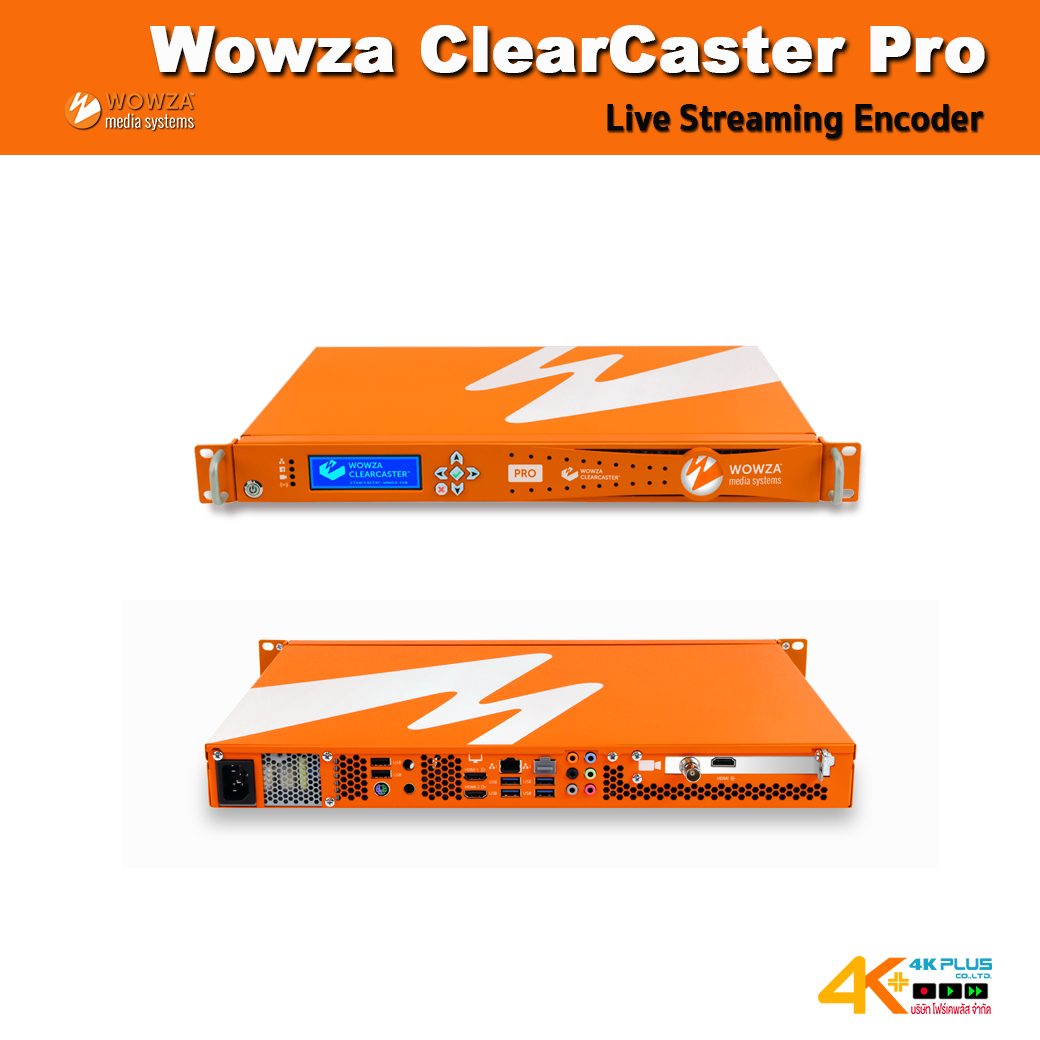

Hardware
1RU; rack-mountable; 1/2 depth; 200W internal power supply
Dimensions: 19.0 x 12.25 x 1.75″ / 48.26 x 31.12 x 4.45 cm
Weight: 10.5 lb / 4.76 kg
