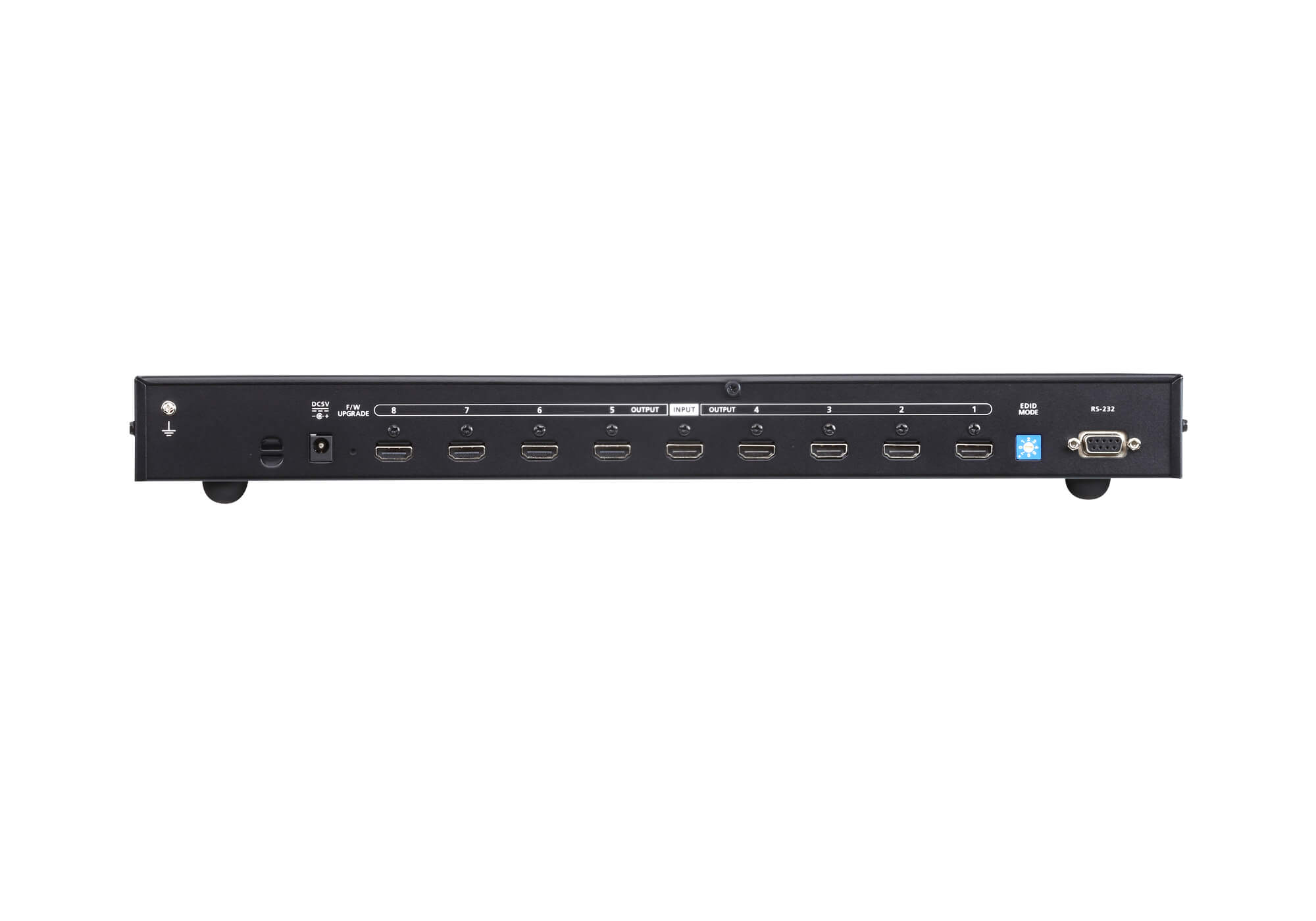

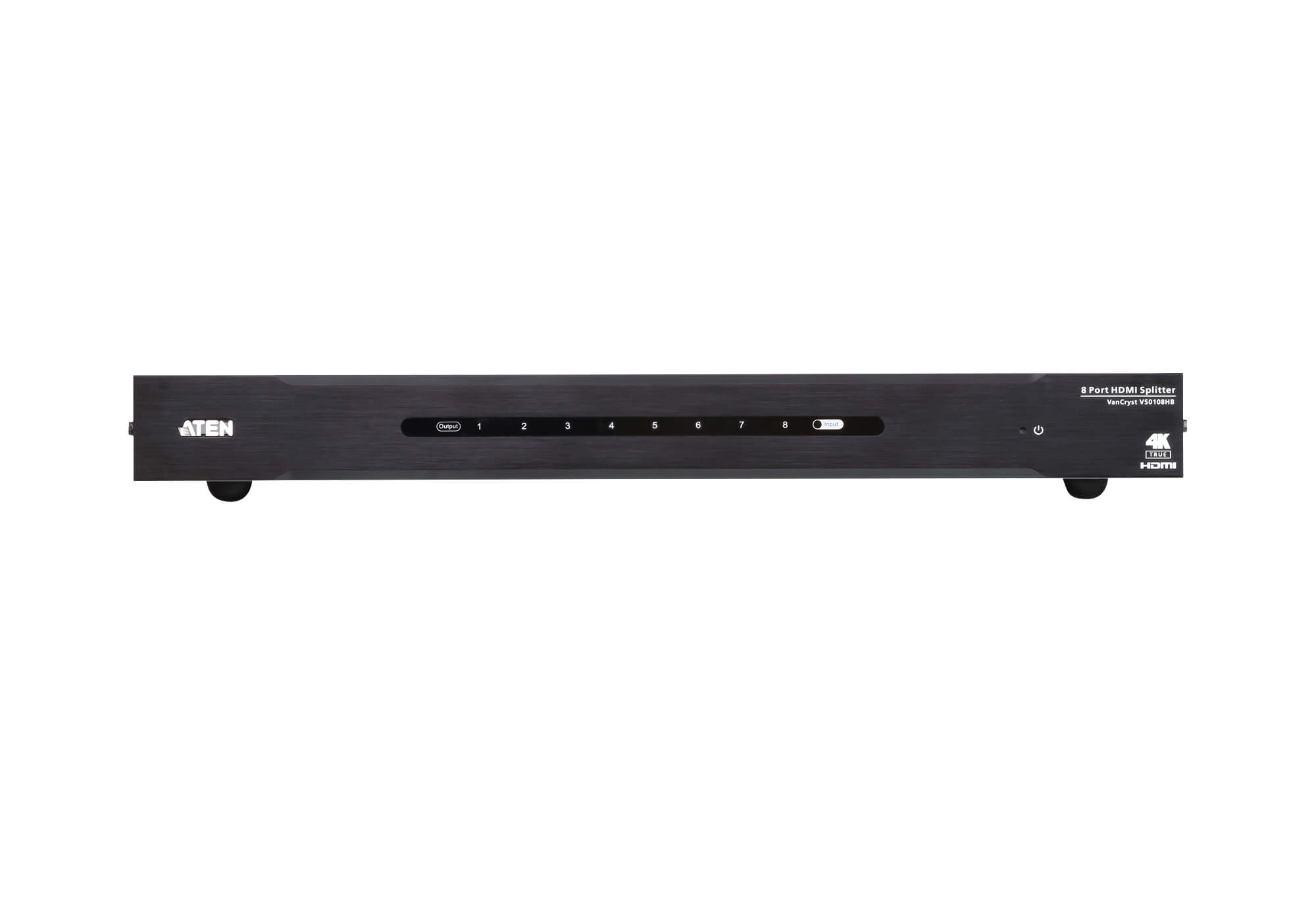

VS0108HB ATEN 8-Port True 4K HDMI Splitter

LEDs

Input

1 x LED (Green)

Video Output

8 X LED (Green)

Power

1 x LED (Green)

Video Input

Interfaces

1 x HDMI Type A Female (Black)

Impedance

100 Ώ

Max. Distance

3M

Source to VS0108HB at 4K@60Hz (4:4:4)

Video Output

Interfaces

8 x HDMI Type A Female (Black)

Impedance

100 Ώ

Max. Distance

3M

VS0108HB to Display at 4K@60Hz (4:4:4)

Video

Max. Data Rate

18 Gbps (6 Gbps Per Lane)

Max. Pixel Clock

600 MHz

Compliance

HDMI 2.0 (3D, Deep Color, 4K);

HDCP 2.2

Max. Resolution

Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)

Control

RS-232

Connector: DB-9 Female (Black) x 1

Baud Rate: 19200,

Data Bits: 8, Stop Bits:1,

Parity: No, Flow Control: No

EDID Settings

EDID Slide Switch x 1

EDID Mode: Port 1 / Default / Auto / Switch

Connectors

Power

1 x DC Jack

Power Consumption

DC5V:11.95W:56BTU

Environmental

Operating Temperature

0-40 °C

Storage Temperature

-20 - 60 °C

Humidity

0 - 80% RH, Non-Condensing

Physical Properties

Housing

Metal

Weight

2.18 kg ( 4.8 lb )

Dimensions (L x W x H)

43.72 x 15.78 x 4.40 cm

(17.21 x 6.21 x 1.73 in.)

Carton Lot

3 pcs

Note

For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
