SDI Reference Inputs
1 x 3G-SDI
รหัสสินค้า | ATEM Streaming Bridge |
หมวดหมู่ | Switchers & Panel |
ราคา | 10,700.00 บาท |
VAT7% | ราคาสินค้ารวมภาษีมูลค่าเพิ่มแล้ว |
สต๊อกสินค้า | เช็คสต๊อกอัพเดทกับทางร้านเท่านั้น |
สถานะสินค้า | Pre-Order |
อัพเดทล่าสุด | 30 พ.ค. 2565 |
จำนวน | ตัว |
1 x 3G-SDI
2 x 3G-SDI
2 Channels embedded in HD-SDI.
HDMI type A out.
2 Channels embedded in HDMI.
1.5G, 3G.
Black burst and Tri‑Sync.
Ethernet supports 10/100/1000 BaseT.
1 x USB Type-C for software configuration and software updates.
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M‑B, SMPTE 425 Level A and Level B.
4:2:2
Television standard sample rate of 48 kHz and 24 bit.
10-bit
YUV
ATEM Streaming Bridge supports video input streamed over ethernet from ATEM Mini Pro and ATEM Mini Pro ISO.
Internal software upgrade via updater application.
Mac 10.14 Mojave,
Mac 10.15 Catalina or later.
Windows 8.1 and 10, both 64-bit.
Mini Switches or setup utility software when connected by USB.
+12V universal power supply included with international socket adapters for all countries.
6W max.
6 - 30V DC.
EMC, FCC, CE and KCC.
0° to 40° C (32° to 104° F)
-20° to 60° C (-4° to 140° F)
0% to 90% non‑condensing

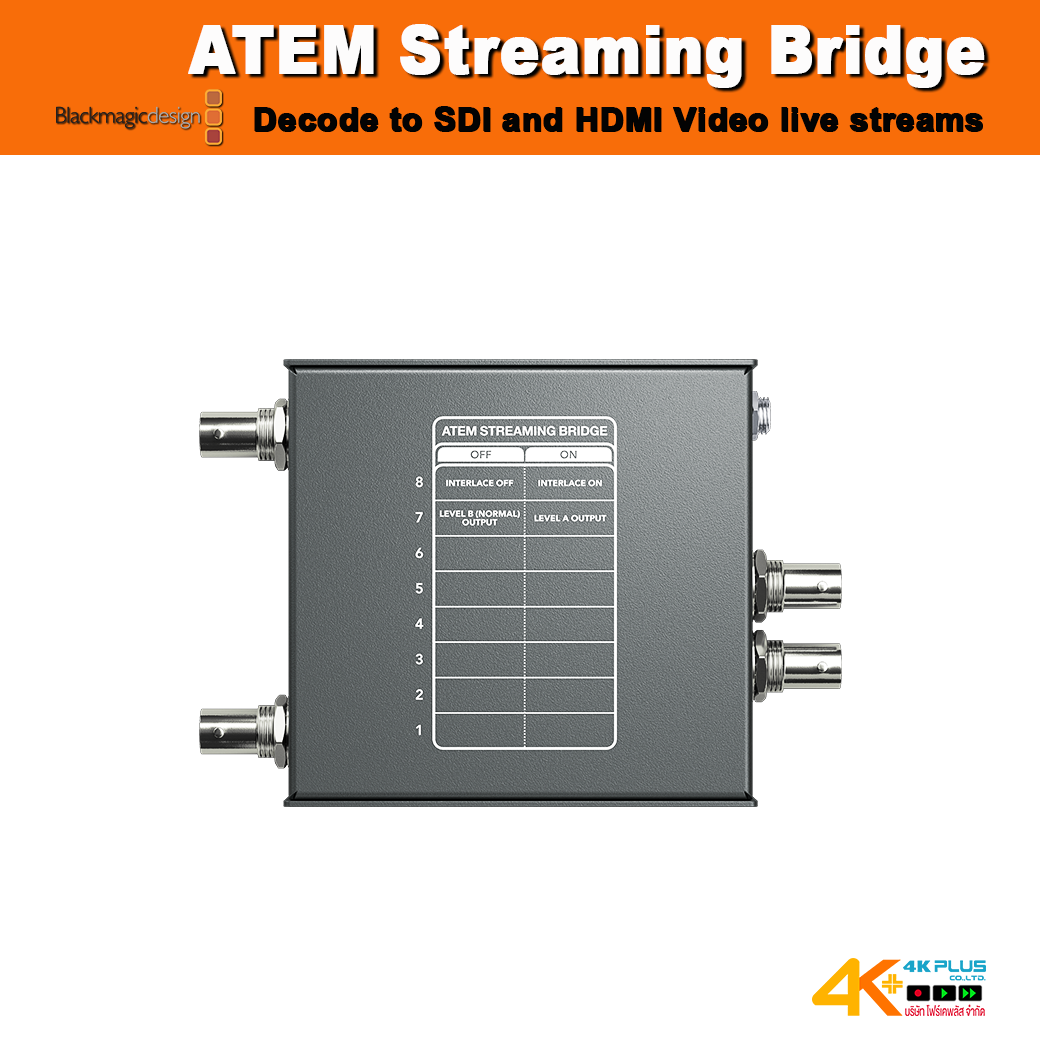

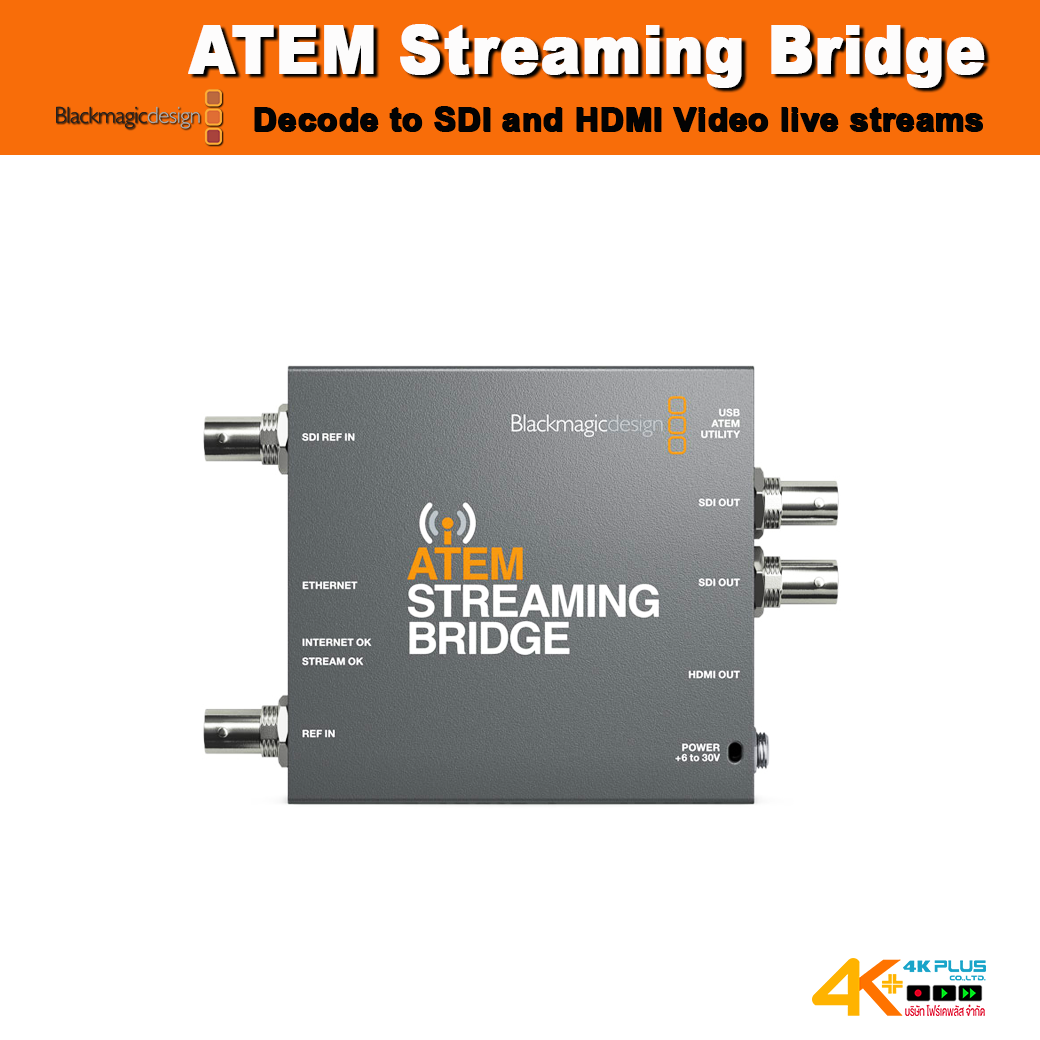

ATEM Streaming Bridge
12V universal power supply with international socket adapters
