1. High Resolution: Full HD 1920x1200
2. High Contrast: 1200:1
3. Ultra Brightness: 2200cd/m²
4. 160°wide viewing angles IPS Panel
5. Ultra thin design 25mm thickness
6. Histogram
7. Peaking Focus Assist (Red,Green,Blue three colors optional highlight over parts of the image in focus)
8. False Colors
9. Zebra Exposure
10. Nine Grid
11. Embedded Audio
12. Scan Mode (Under Scan, Over Scan)
13. Zoom (4x,9x,16x)
14. Anamorphic Mode (1.3x, 2.0x, 2.0x mag, User-defined adjustment: 1.20X~2.00X)
15. Pixel to Pixel
16. Center Marker
17. Safe Area (80%,85%,90%,93%,96%,2.35:1)
18. Ratio marker (4:3,13:9,14:9,15:9,16:9,1.85:1,2.35:1)
19. Marker Color (Red,Green,Blue,White,Black）
20. Check Field (Red/Green/Blue/Mono)
21. Image Flip (H, V, H/V)
22. Image Freeze
23. Zoom All (0~100 adjustable)
24. U/D & L/R Zoom (0~100 adjustable)
25. Color Temperature Adjustment
Tech Specs
Display Spec.

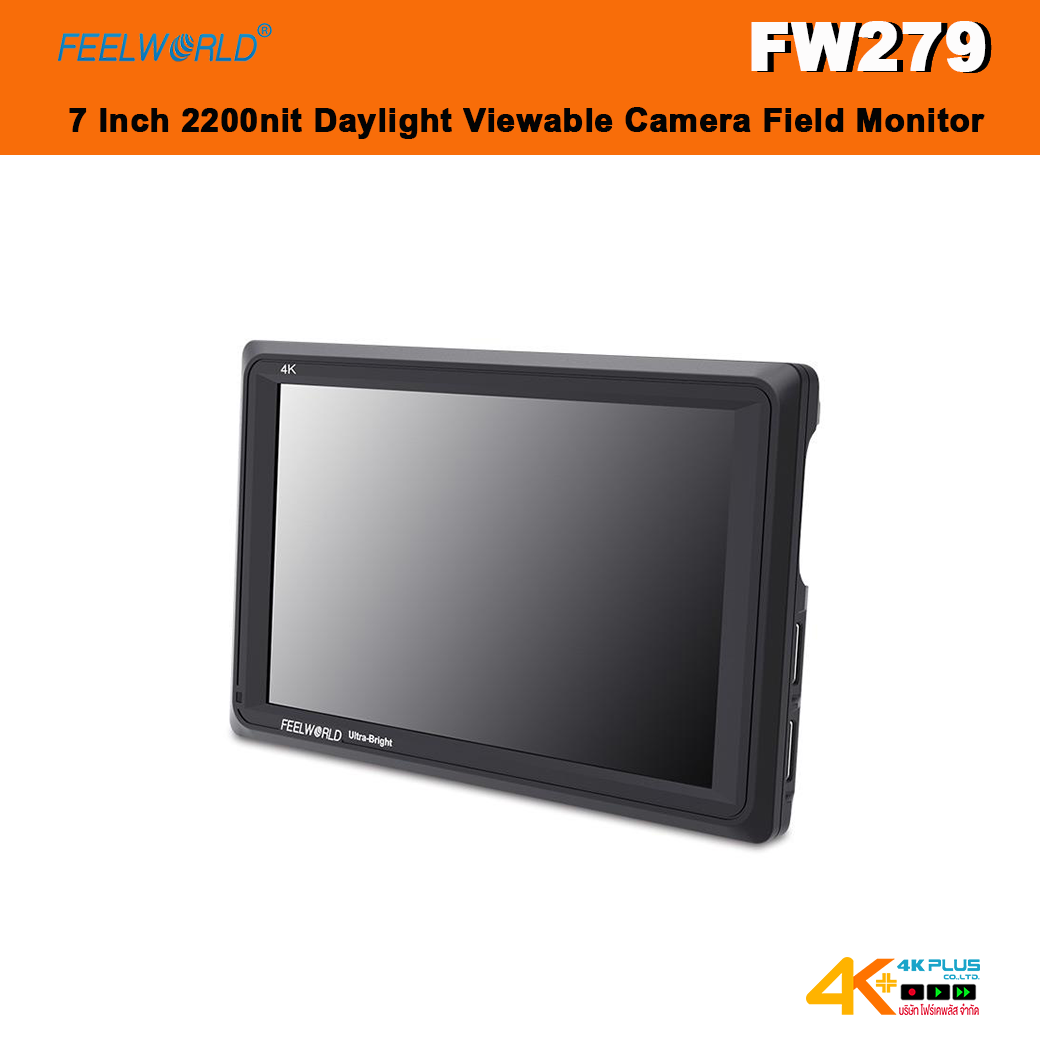

| Model |
FW279 |
| Screen Size |
7" IPS |
| Resolution |
1920x1200 pixels |
| Pixel Pitch |
0.07875 (H) x 0.07875 (W) (mm) |
| Aspect Ratio |
16:10 |
| Brightness |
2200cd/m² |
| Contrast Ratio |
1200:1 |
| Backlight |
LED |
| Viewing Angle |
80°/80°(L/R) 80°/80°(U/D) |
Input
Output
Audio
| Audio |
Stereo Headphone, Speaker |
HDMI Input/ Output Support Format
| 480i/576i/480p/576p |
| 1080i (60/59.94/50) |
| 720p (60/59.94/50/30/29/25/24/23.98) |
| 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF) |
|
4K UHD 3840×2160p (30/29.97/25/24/23.98Hz), 4096×2160p (24Hz)
|
General
| Input Voltage |
DC7～24V |
| Power Consumption |
≤18W |
| Working Temperature |
-20°C~55°C |
| Storage Temperature |
-30°C~65°C |
| Install Way |
1/4"-20 Thread Socket (bottom) |
| Battery Plate |
F970 (Standard); D28S/D54, LP-E6, U60 (Optional) |
| Unit Size |
180Lx120Hx25D (mm) |
| Unit Weight |
340g/370g (With F970 Battery Plate) |
Note: When you turn off the monitor, you need to press the power button, and you can't pull out the power cable directly.
Advanced Features
| * Brightness Histogram |
| * Embedded Audio |
| * Peaking Focus Assist (Red, Green, Blue three colors optional highlight over parts of the image in focus) |
| * False Colors |
| * Zebra Exposure (1-100IRE adjustable) |
| * Check Field (Red, Green, Blue, Mono) |
| * Scan Mode (Under Scan, Over Scan) |
| * Anamorphic Mode (1.3x, 2.0x, 2.0x mag) |
| * Image Flip (H, V, H/V) |
| * Image Freeze |
| * Center Marker |
| * Screen Marker (80%,85%,90%,93%,96%, 2.35:1) |
| * Ratio marker (4:3,13:9,14:9,15:9,16:9,1.85:1,2.35:1) |
| * Color Temperature Adjustment |
| * Nine Grid (Nine Grid Zoom: zoom one of the images to realize the full screen) |
| * Zoom (4X, 9X, 16X) |
| * Aspect Ratio |
| * Pixel to Pixel |
| * Zoom All |
| * U/D Zoom |
| * L/R Zoom |
