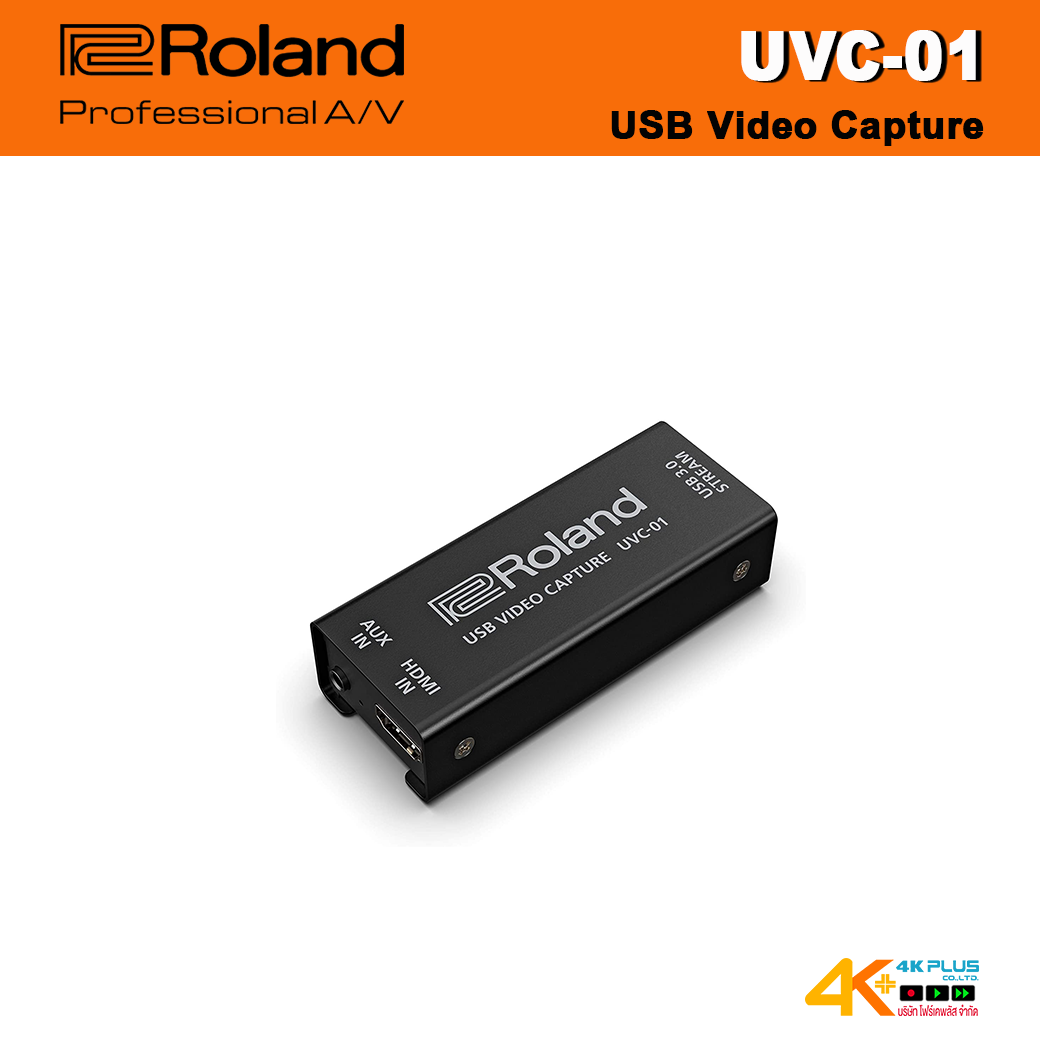

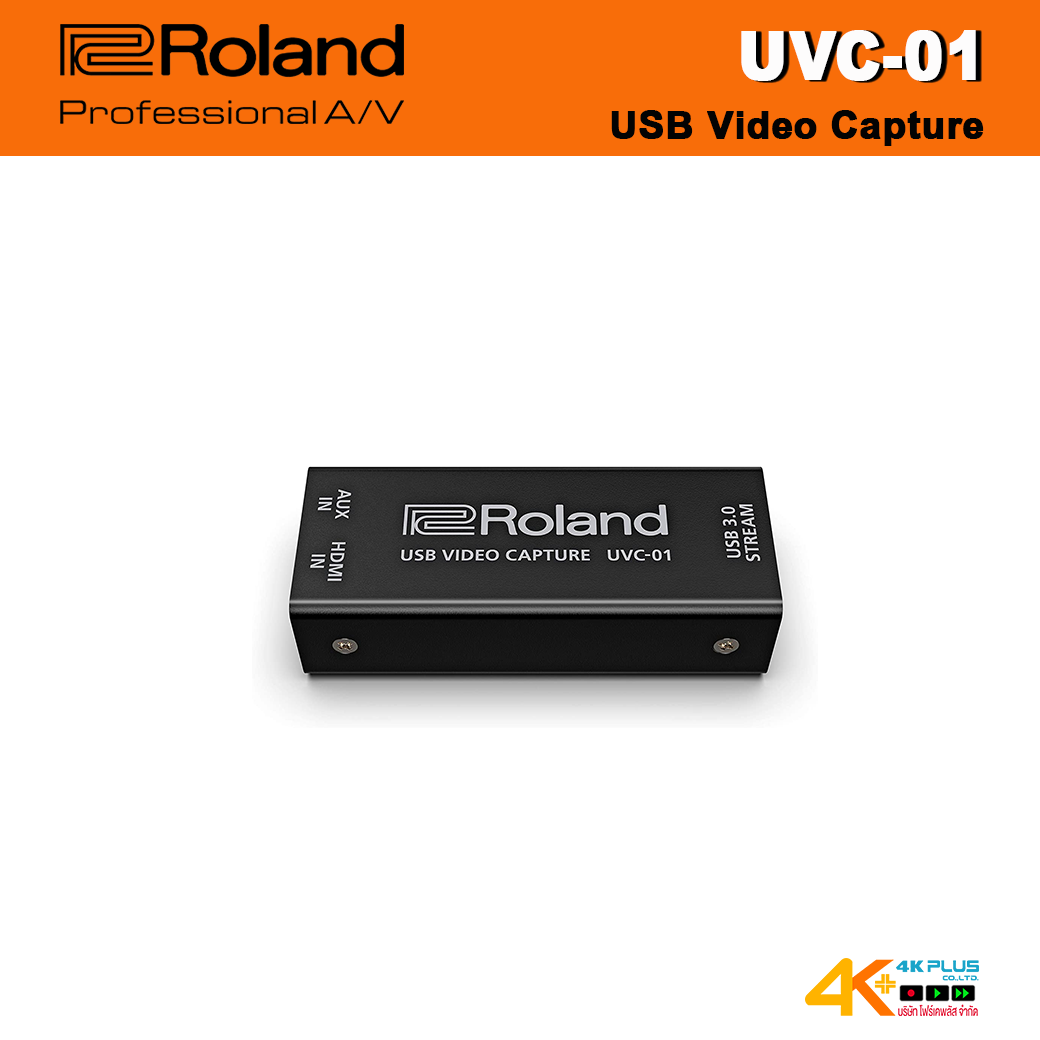

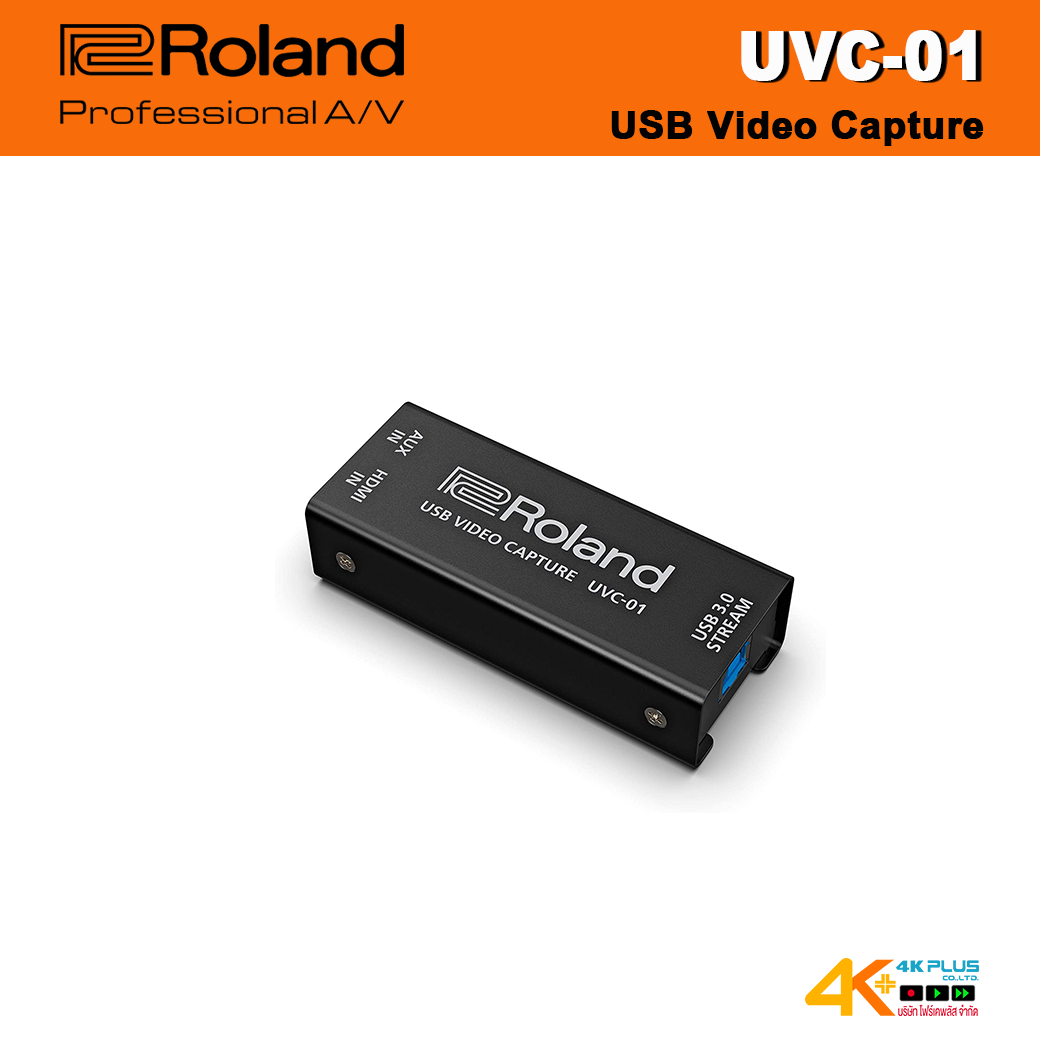

Roland UVC-01 USB3.0 Video Capture

For online content creators, musicians, and gamers to businesses, schools, and houses of worship, livestreaming is an essential medium for communicating with people around the world. With the UVC-01, it’s never been easier to add high-quality livestreaming capabilities to your Roland V-series video switcher or favorite HDMI-equipped camera or camcorder.

Just connect to the UVC-01 via HDMI, plug into your computer’s USB 3.0 port, and start streaming to Facebook Live, YouTube, and other popular platforms. Offering plug-and-play operation in a rugged, pocket-size design, the UVC-01 is ready for action everywhere you go.

Tech Specs

VIDEO

Input Connectors

HDMI IN connector: HDMI type A

* Multi-format Supported

* HDCP Not Supported

Output Connectors

USB STREAM port: USB 3.0 B type

Input Formats

480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p, VGA (640 x 480/60 Hz), SVGA (800 x 600/60 Hz), XGA (1024 x 768/60 Hz), HD (1280 x 720/60 Hz), WXGA (1280 x 800/60 Hz), SXGA (1280 x 1024/60 Hz), FWXGA (1366 x 768/60 Hz), SXGA+ (1400 x 1050/60 Hz), UXGA (1600 x 1200/60 Hz), FHD (1920 x 1080/60 Hz)

* The refresh rate is the maximum value of each resolution.

* Conforms to VESA DMT Version 1.0 Revision 11.

USB Video Output Format

YUY2 (Uncompressed)

USB Video Output Resolution

1920 x 1200, 1920 x 1080, 1680 x 1050, 1600 x 1200, 1600 x 900, 1440 x 900, 1366 x 768, 1360 x 768, 1280 x 1024, 1280 x 960, 1280 x 800, 1280 x 720, 1152 x 864, 1024 x 768, 1024 x 576, 960 x 540, 856 x 480, 800 x 600, 768 x 576, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240

* The maximum frame rate is 60 fps.

AUDIO

Audio formats

HDMI IN connector: Linear PCM, 48 kHz / 44.1 kHz, 24 bits / 20 bits / 16 bits, stereo

USB STREAM port: Linear PCM, 48 kHz, 16 bits, stereo

Input Connectors

HDMI IN connector: HDMI type A

AUX IN jack: Stereo miniature phone type

Output Connectors

USB STREAM port: USB 3.0 B type

Nominal Input Level

AUX IN jack: -10 dBu (Maximum input level: +8 dBu)

Input Impedance

AUX IN jack: 10 k ohms

OTHERS

Power Supply

Supplied from the computer via USB

Current Draw

500 mA

Operation Temperature

+0 to +40 degrees Celsius

+32 to +104 degrees Fahrenheit

Dimensions

90 (W) x 37 (D) x 23 (H) mm

3-9/16 (W) x 1-1/2 (D) x 15/16 (H) inches

Weight (excluding AC adaptor)

96 g

4 oz

Accessories

Owner's Manual

USB 3.0 Cable
