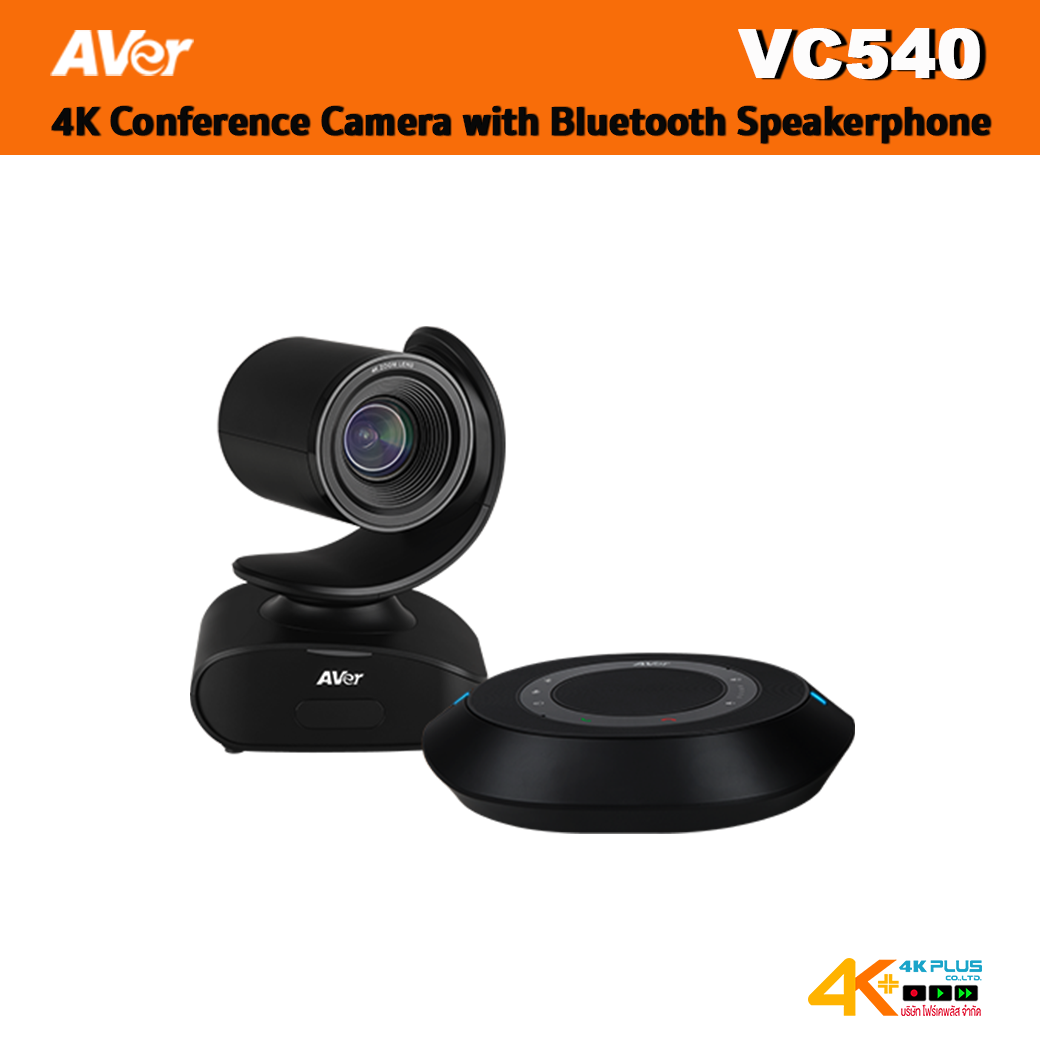

AVer VC540 4K Conference Camera with Bluetooth® Speakerphone for Medium-to-Large Rooms

Bluetooth Makes Things Simple


Get rid of complicated cables. The upgraded speakerphone’s Bluetooth capability makes connecting to tablets and mobile phones easy, and it keeps your conference room clean so you can make a strong impression.

AVer SmartFrame Gets Your Meetings Started Fast
The VC540 delivers the efficiency of AVer SmartFrame to your meeting room. SmartFrame maximizes the viewable field with an auto-framing solution that quickly and effortlessly puts everyone in your meeting into frame.

Professional Clarity with a 16X total Zoom
Enhance your communication by showing every detail precisely and smoothly. The VC540 is embedded with a 16X total zoom and multi-coated autofocus optics to present complex product details in crystal-clear quality.

Cutting-Edge 4K Ultra HD
The VC540 uses a Sony™ high-quality sensor and multi-lens glass to provide the sharpest video possible. Also, an advanced image-processing engine allows you to display natural, vividly colored details even in challenging lighting conditions and on very low-latency networks.

Tech Specs

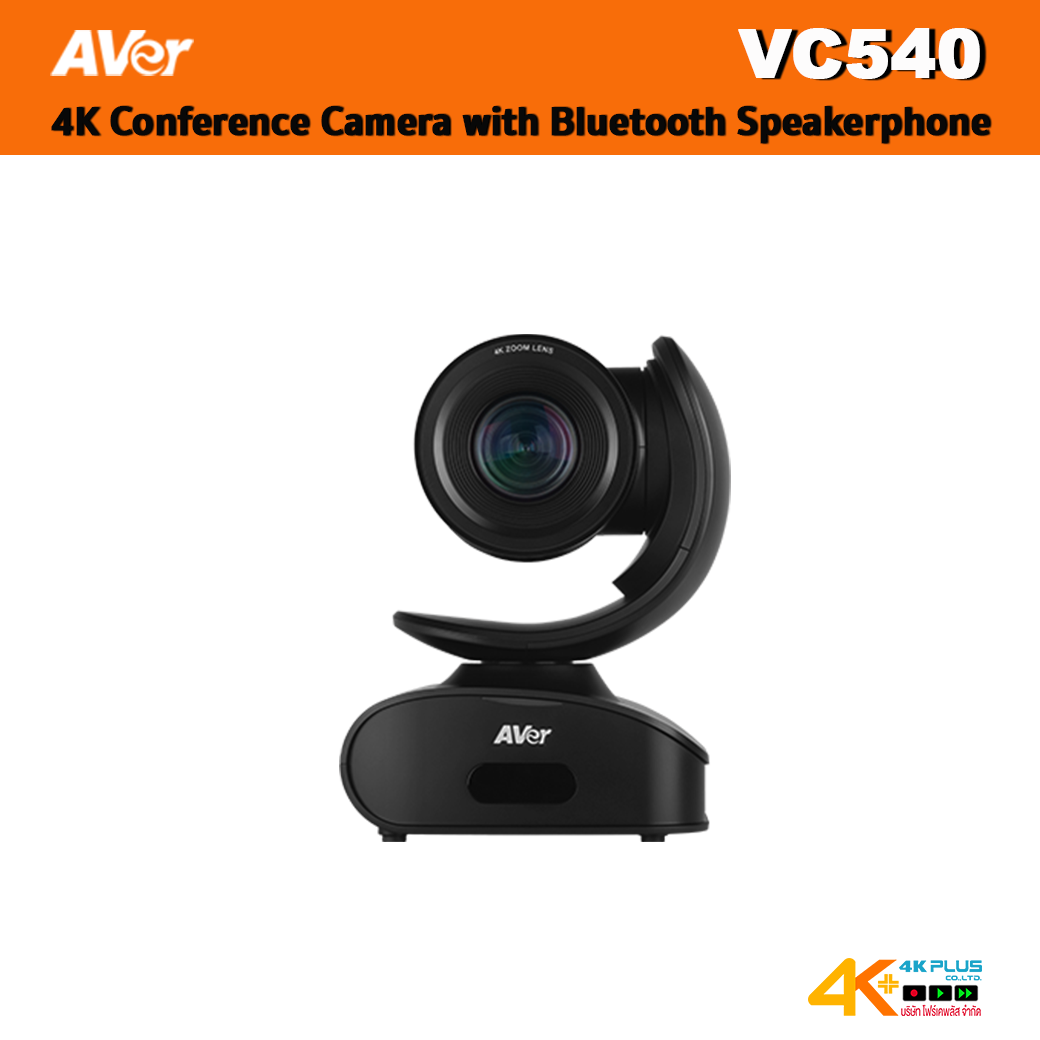

• Camera

  • Ultra-crystal-clear image support up to 4K
  • Frame rate: 4K, 1080p, 720p, 640 x 480, 320 x 240
  • SmartFrame: automatic FOV adjustment to fit all participants
  • 16X zoom
  • Autofocus: minimum working distance 1 meter
  • 86° horizontal field of view
  • Backlight compensation and 2D noise reduction technology for optimizing light balance in varying conditions
  • Standard tripod screw holes
  • Analytics API: enterprises and third-party software providers can obtain people-counting data to better understand meeting-space usage

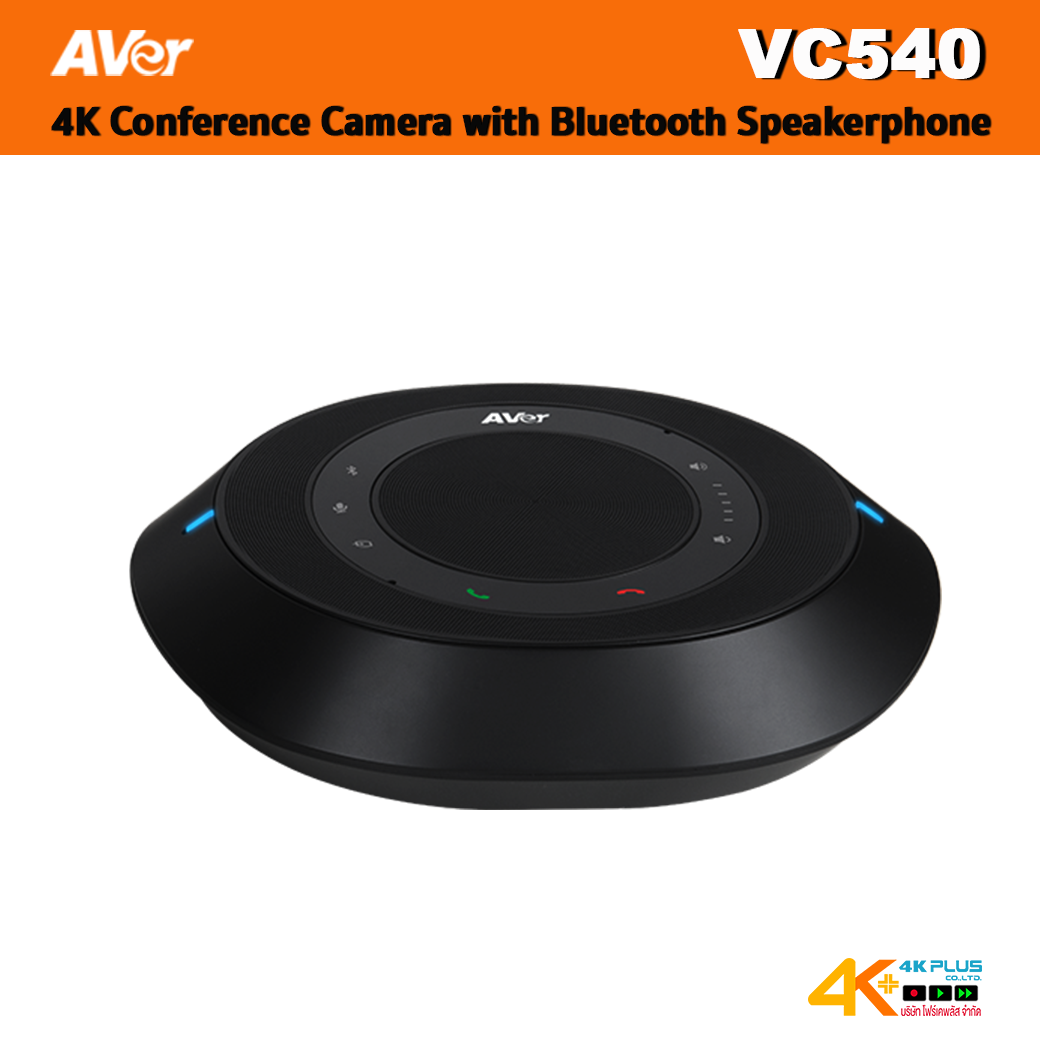

• Speakerphone

  • Bluetooth / USB Wired
  • Full-duplex microphone array with echo cancellation
  • Advanced noise suppression
  • 2-microphone array
  • 3.5 mm phone-in Jack
  • 3.5 mm line out
  • Speaker volume: adjustable to 90 dB SPL at 0.5 m
  • Touch controls for volume down/up, mute, phone input, call, and hang up
  • Can bridge phone-in and USB into one call
  • Security: Kensington slot

• Motorized Pan & Tilt Movement

  • Pan: ±160°
  • Tilt: +90° (up) -30° (down)
  • 10 camera presets (via remote control)
  • Fast and quiet pan & tilt movement

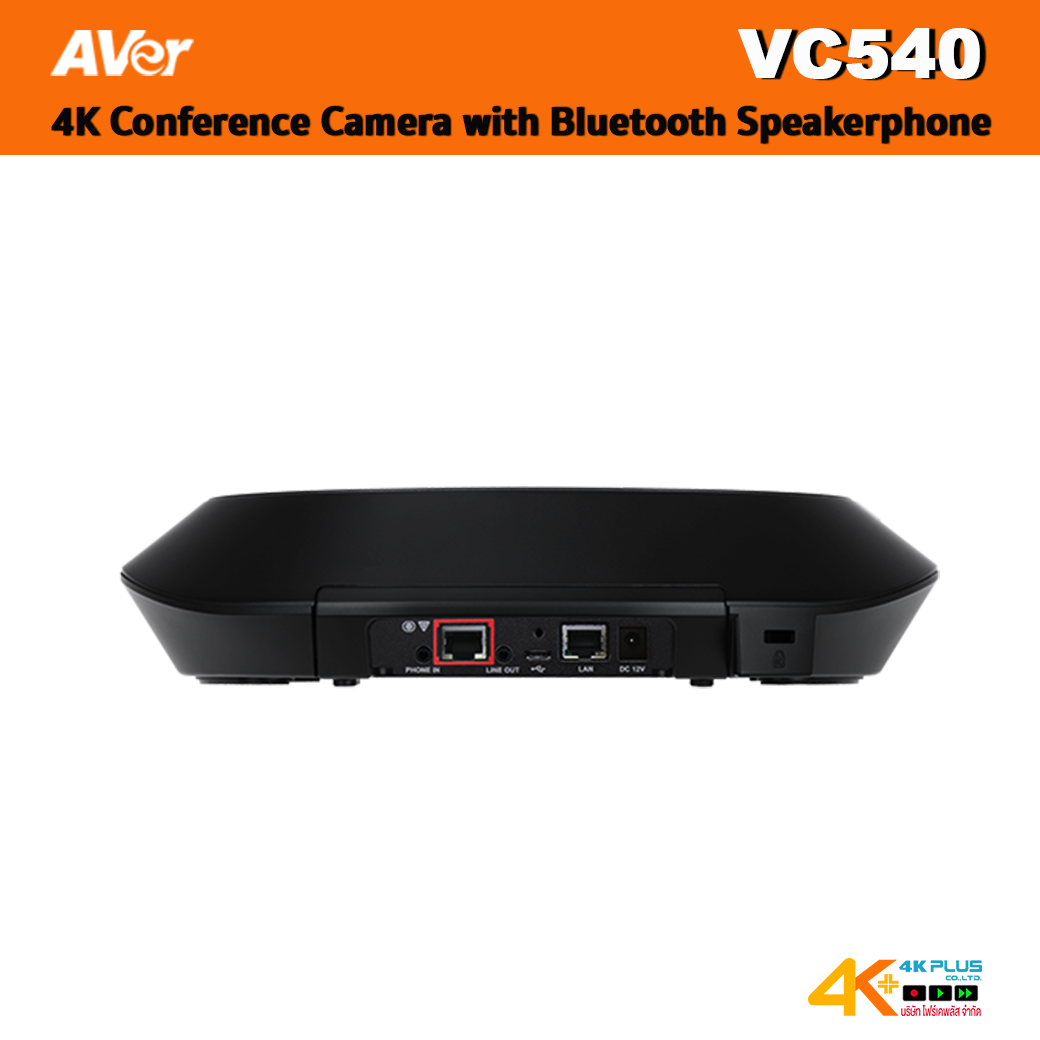

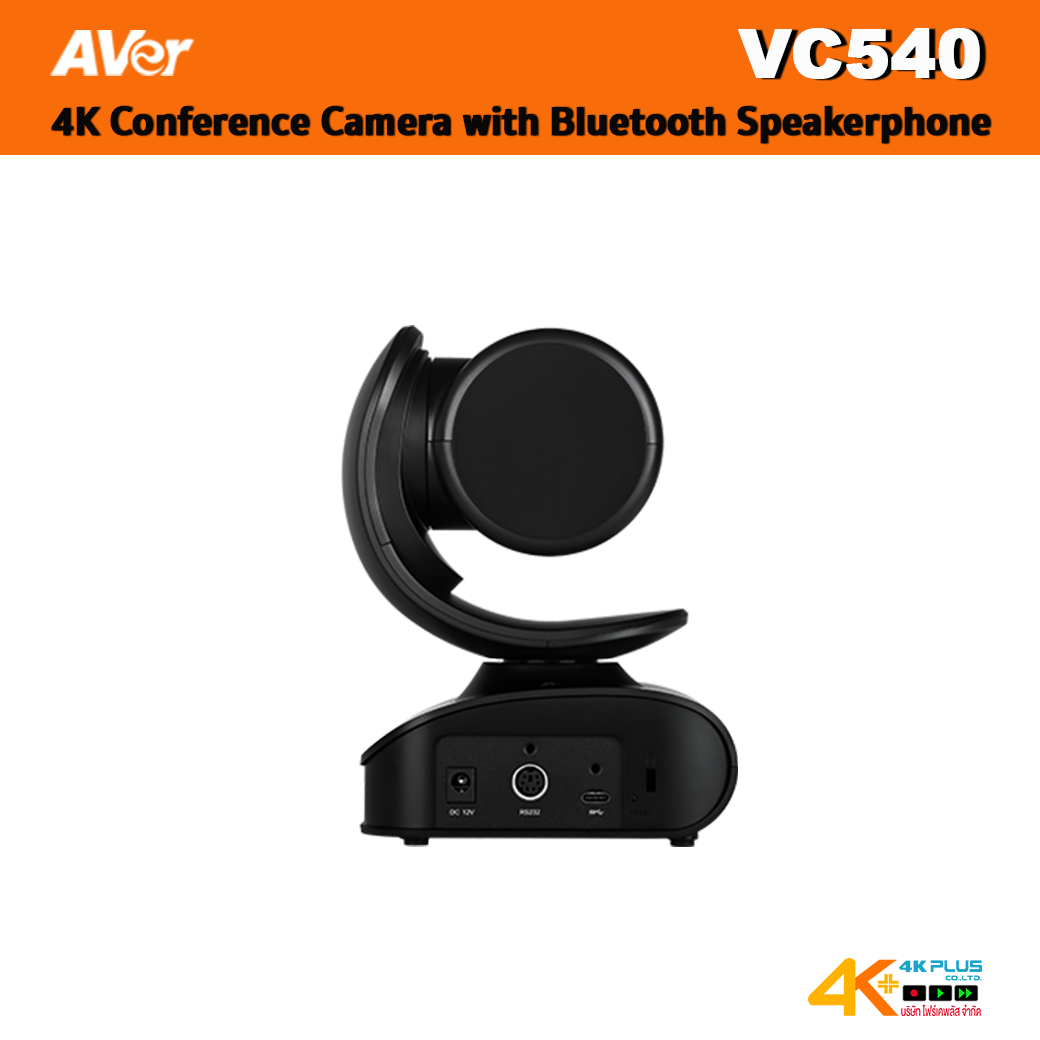

• Connectivity

  • Mini DIN 6 for RS232 connector for camera
  • USB Type-C connector for camera
  • Micro USB connector for speakerphone
  • IP (RJ45) connector for speakerphone
  • Bluetooth for speakerphone

• Video Format

  • YUV, MJPEG



• USB

  • 2.0, 3.1 Gen1
  • UVC (USB Video Class) 1.1
  • UAC (USB Audio Class) 1.0
