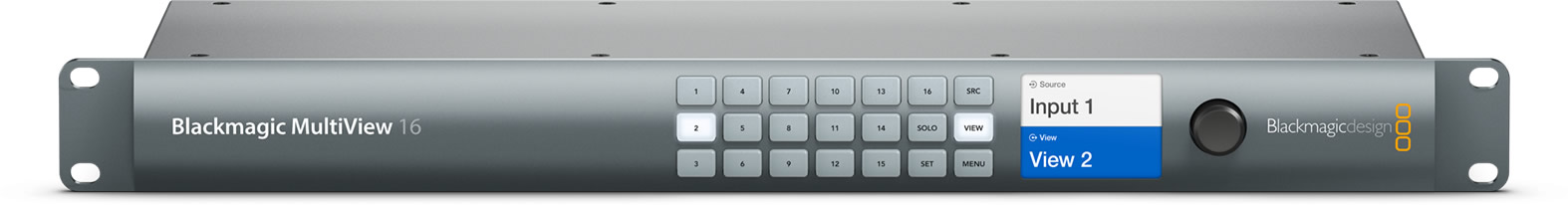

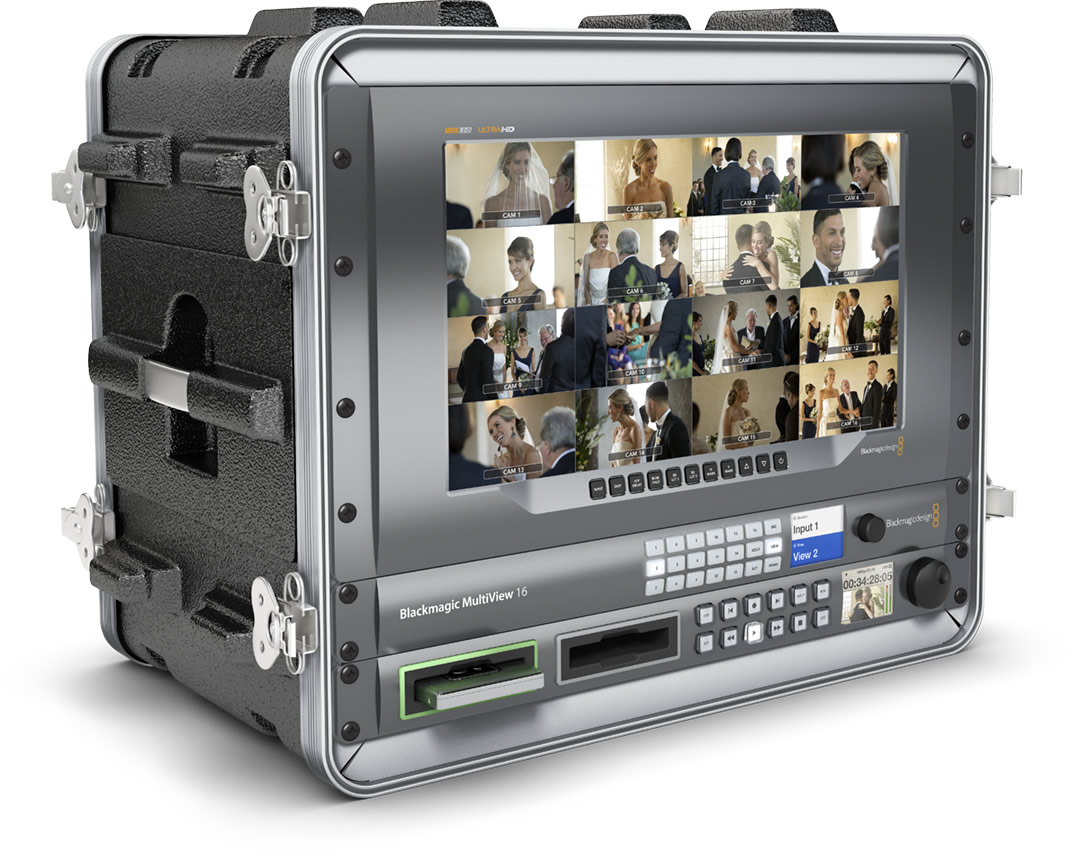

Blackmagic MultiView 16

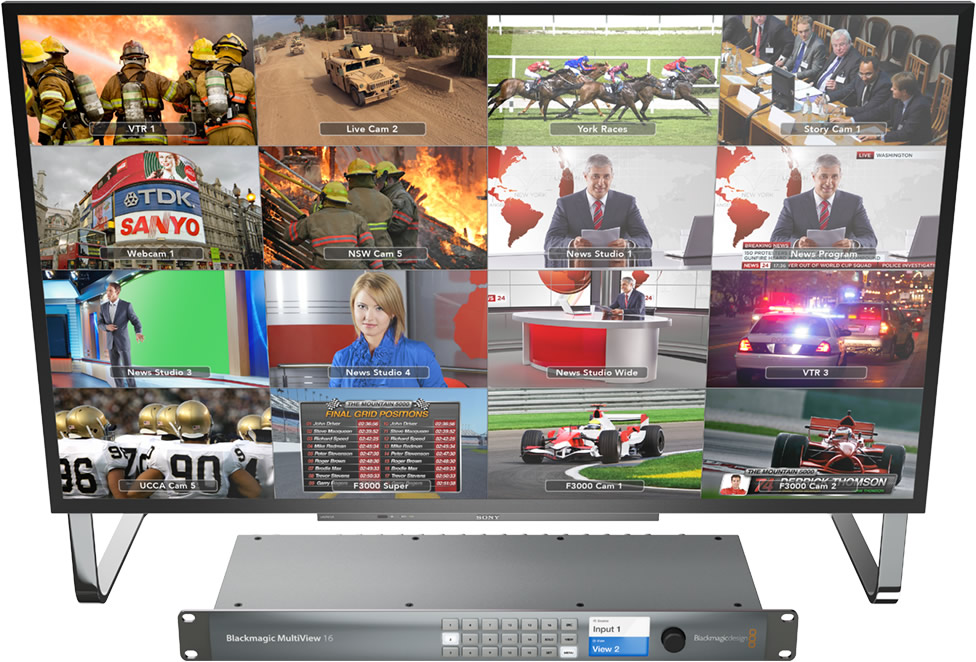

     The Blackmagic Multiview 16 can connect up to 16 different SD, HD and Ultra HD SDI sources into one display for monitoring

Tech Specs

SDI Video Input : 16 x 10-bit SD-SDI, HD-SDI and 6G-SDI.

SDI Video Loop Output : 16 x 10-bit SD-SDI, HD-SDI and 6G-SDI.

Multi View Outputs : 4 x SDI plus 1 x HDMI (2 x HD, 2 x 6G-SDI, 1 x HDMI), able to be used concurrently.

SDI Video Multi View Outputs : 2 x 10-bit HD-SDI, 2 x 10 bit 6G-SDI.

HDMI Video Multi View Outputs : 1 x HDMI type A connector.

SD Format Support : 625/25 PAL, 525/29.97 NTSC.

HD Format Support : 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60.

2K Format Support : 2048x1080p23.98, 2048x1080p24, 2048x1080p25, 2048x1080PsF23.98, 2048x1080PsF24, 2048x1080PsF25.

4K Format Support : 3840x2160p23.98, 3840x2160p24, 3840x2160p25, 3840x2160p29.97, 3840x2160p30, 4096x2160p24.
