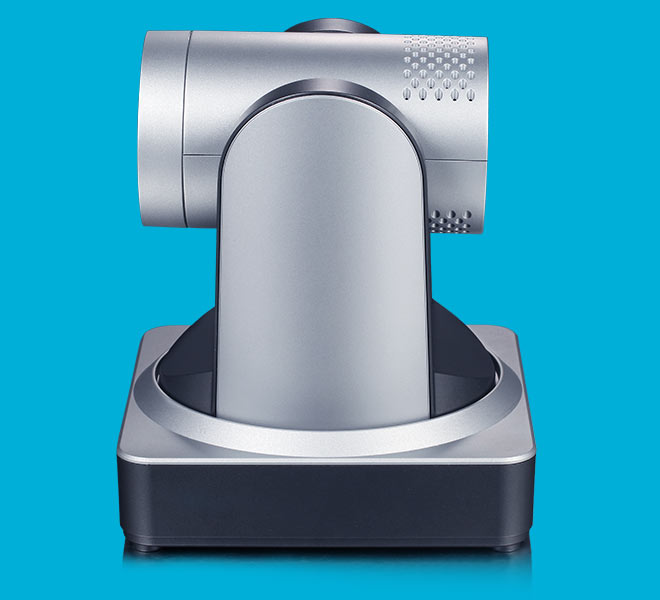

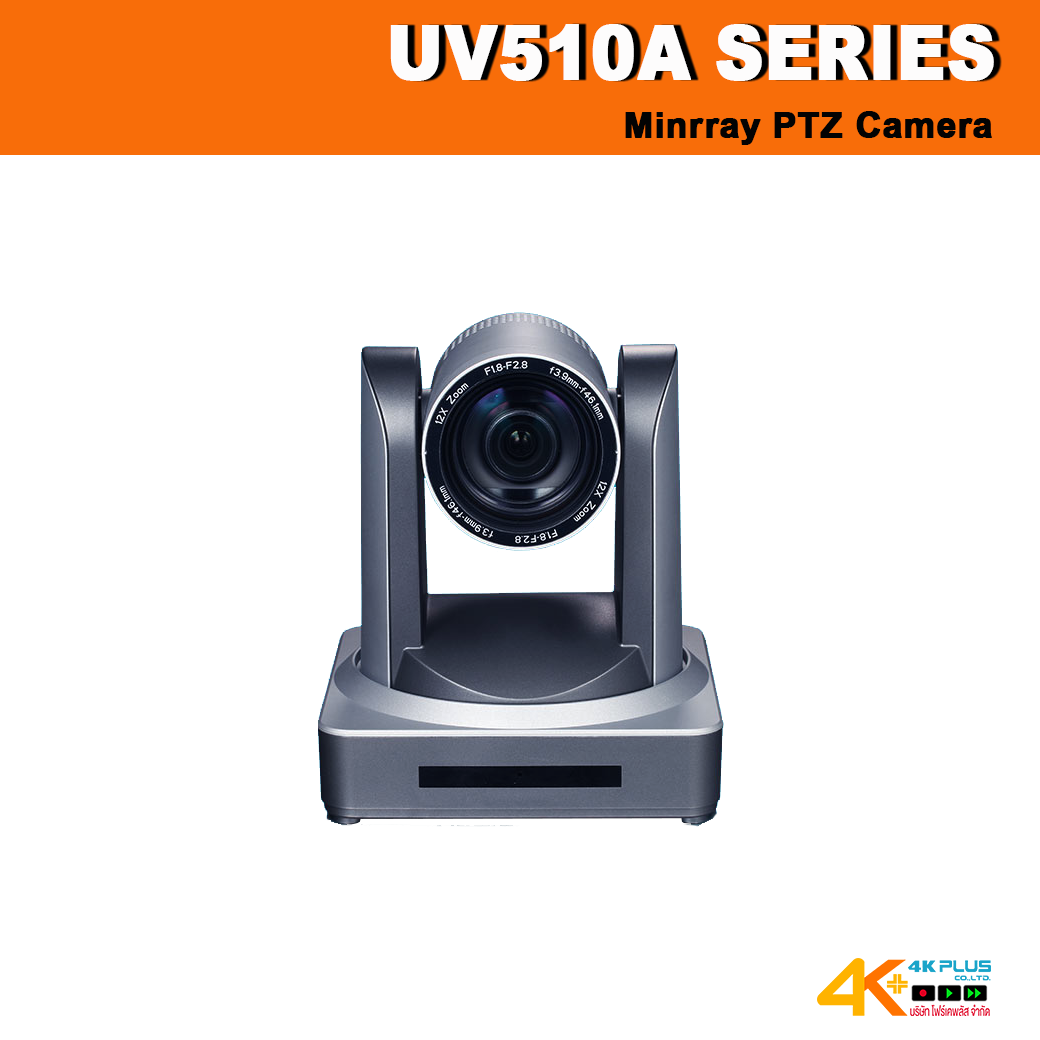

UV510A Series Minrray PTZ Camera

• • Superb High-definition Image
  UV510A employs 1/2.8 inch high quality CMOS sensor. Resolution is up to 1920×1080 with frame rate up to 60fps.

• Leading Auto Focus Technology
   Leading auto focus algorithm makes lens a fast,  accurate and stable auto-focusing.

• Low Noise and High SNR
  Low Noise CMOS effectively ensure high SNR of camera video. Advanced 2D/3D noise reduction technology is also used to further reduce the noise, while ensuring image sharpness.

• Audio Input Interface (for future development)
  Support16000,32000,44100,48000sampling frequency and AAC,MP3,PCM audio coding.

• Wide-range, Quiet and Quick Pan/Tilt Mechanism
  By adopting step driving motor mechanism, UV510A camera works extremely quiet and moves smoothly .

• Multiple Audio/Video compression
  Support H.264/H.265 video compression;AAC, MP3 and PCM audio compression; Support compression of resolution up to 1920×1080 with frame up to 60fps and 2 channel 1920x1080p with 30fps compression.

• Multiple Network Protocol
  Support NDI® ,ONVIF,RTSP,RTMP protocols and support RTMP push mode,easy to link streaming media server (Wowza,FMS)
• RS-232 Cascade Function
  Support RS-232 cascade function which is convenient for installation.

• Wide Application
  Tele-education,lecture capture,Webcasting, Videoconferencing,Tele-training,Tele-medicine,    Interrogation and Emergency command systems.

• Low-power sleep function
  Support low-power sleep/wake up,the consumption is lower than 400mW under sleep mode.

NDI® is a registered trademark of NewTek, Inc.

Tech Specs

Model	UV510A-05		UV510A-10	UV510A-12	UV510A-20	UV510A-30
Camera, Len Parameter
Sensor	1/2.8 inch high quality HD CMOS sensor
Effective Pixels	16: 9, 2.07 megapixel
Video Format	DVI/HDMI/3G-SDI/HDBaseT video format:  1080P60/50/30/25/59.94/29.97; 1080I60/50/59.94; 720P60/50/30/25/59.94/29.97 U3 interface video format: 1) U3: 1920X1080P60/50/30/25; 1280X720P60/50/30/25; 960X540P30; 640X360P30; 640X480P30; 352X288P30; 960X540P30; 800X600P30. 2) U3 compatible with U2: 960X540P30; 640X360P30; 1280X720P10/15; 720X576P50; 720X480P60; 640X480P30; 352X288P30; 800X600P30. U2 interface video format: 176×144/320×240/320×180/352×288/640×480/720×480/720×576/ 640×360/800X600/960X540/1024X576/1024X768/1280X720/1920X1080P30/25/20/15/10/5
Optical Zoom	5X f＝3.1～15.5mm		10X f＝4.7～47mm	12X f＝3.9～46.8mm	20X f＝5.5～110mm		30X f＝4.3～129mm
View Angle	20°(tele)–83.5°(wide)		6.43°(tele)–60.9°(wide)	6.3°(tele)–72.5°(wide)	3.3°(tele)–54.7°(wide)		2.34°(tele)—65.1°(wide)
AV	F1.8 – F2.8		F1.6 – F3.0	F1.8 – F2.4	F1.6 – F3.5		F1.6 – F4.7
Digital Zoom	10X
Minimum Illumination	0.5Lux (F1.8, AGC ON)
DNR	2D & 3D DNR
White Balance	Auto / Manual/ One Push/3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K
Focus	Auto/Manual/One push focus
Aperture/Electronic Shutter	Auto/Manual
BLC	ON/OFF
WDR	OFF/ Dynamic level adjustment
Video Adjustment	Brightness,Color,Saturation,Contrast,Sharpness,B/W mode,Gamma curve
SNR	>55dB
Input/Output Interface
Video Interfaces		UV510A-STmodel: 3G-SDI, HDMI, LAN, RS232(input & output), RS485,A-IN NEW UV510A-NDImodel: SDI, HDMI, LAN(NDI),RS232(In & Out), RS485, A-IN UV510A-U2model: USB2.0, LAN, RS232(input & output), A-IN UV510A-U3model: USB3.0, LAN, RS232(input & output), A-IN UV510A-HDmodel: HDBaseT(POE), LAN, A-IN, RS232(input) UV510A-HMmodel: HDMI, LAN, RS232(input) UV510A-U2U3model: USB2.0, USB3.0, HDMI, LAN, RS232(input) UV510A-RFmodel: WiFi(RF), LAN
Video Output Interfaces		HDMI、3G-SDI、LAN、USB3.0、USB2.0
Image Stream		Double stream output
Video Compression Format		H.264, H.265
Control Protocol		VISCA/Pelco-D/Pelco-P;Baud Rate:115200/9600/4800/2400bps
Audio Input Interface		A-IN：Double track 3.5mm linear input
Audio Compression Format		AAC/MP3/G.711A
Network Interface		100M IP port(100BASE-TX) 5G WiFi (optional) .
Network Protocol		RTSP,RTMP,ONVIF,GB/T28181,NDI(Optional), Network VISCA Control Protocol,Support remote upgrade, reboot and reset.
ControlInterface		RS232 (input & output),RS485
Power Interface		HEC3800 outlet (DC12V),2pin waterproof aerial socket (RF model)
Power Adapter		Input: AC110V-AC220V. Output: DC12V/1.5A
Input voltage		DC12V±10%
Input current		1A (Maximum)
Power Consumption		12W(Maximum)
RF parameter
Operating frequency range		5.1—5.9 (GHz)
Transmit power		17dBm
Channel bandwidth		40MHz
Modulation mode		OFDM
Transmission distance		≤300m (Outdoor without blocking), ≤150m (Indoor without blocking)
Transmission data rate		Max 300Mbps (Determined by transmission distance and channel occupancy)
Anti-interference mode		Manual/automatic channel mode selection
PTZ Parameter
Pan/Tilt Rotation		±170°,-30°～+90°
Pan Control Speed		0.1 -60°/sec
Tilt Control Speed		0.1-30°/sec
Preset Speed		Pan: 60°/sec, Tilt: 30°/sec
Preset Number		255 presets (10 presets by remote controller)
Other Parameter
Storage Temperature		-10℃～+60℃
Storage Humidity		20%～95%
Working Temperature		-10℃～+50℃
Working Humidity		20%～80%
Dimension		150mm×150mm×180mm(RF model)
Weight (around)		1.4KG
Using environment		Indoor

Accessory
Random Accessory	12V/1.5A power supply, RS232 control line, USB3.0 connection line (U3 model), USB2.0 connection line (U2 model), remote controller, Manual, warranty card
Optional Accessories	Mounting bracket
