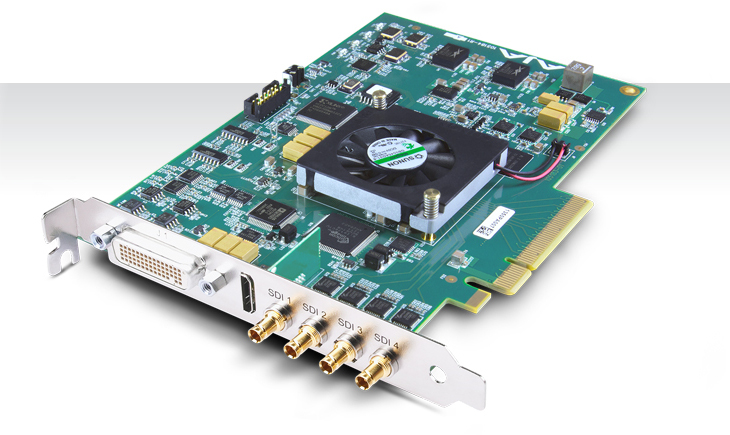

KONA 4  video and audio I/O SD to HD, 2K and 4K

        KONA 4 is a powerful 8-lane PCIe 2.0 video and audio desktop I/O card with unparalleled features for handling everything from SD to HD, 2K and 4K with full 10-bit 4:2:2 and 4:4:4 color spaces for fantastic image clarity. KONA 4 has the power for the work you do today and into the future

     Tech Specs

Video Input Digital

• 3G/SD/HD SDI, SMPTE-259/292/296/424, 8- or 10-bits
• Single Link 4:2:2 or 4:4:4 (1 x BNC)
• Dual Link HD 4:4:4 (2 x BNC)
• 2K HSDL (High Speed Data Link) 4:4:4, (2 x BNC)
• 4K/UltraHD
• 1D LUT Support

Video Output Digital

• 3G-SDI, SMPTE-259/292/296/424
• Single Link 4:2:2 or 4:4:4 (1 x BNC)
• Dual Link HD 4:4:4, (2 x BNC)
• 2K HSDL (High Speed Data Link) 4:4:4, (2 x BNC)
• 4K/UltraHD 4:2:2 and 4:4:4
• HDMI v2.0b, 30/36 bits/pixel, RGB or YUV, 2.25Gbps, SD, HD and UHD with HFR support up to 60p 4:2:0

Video Output Analog

• Composite/S-Video (Y/C) (1 x BNC/2x BNC+adapter)
• NTSC, NTSCJ, PAL
• Component (3 x BNC)
• HD: YPbPr, RGB
• SD: YPbPr, RGB (component mode)
• SMPTE/EBU N10, Betacam 525 line, Betacam 525J, RGB
• 12-bit D/A, 8x oversampling

Audio Input Digital

• 16-channel, 24-bit SDI embedded audio, 48kHz sample rate, Synchronous
• 8-channel, 24-bit AES/EBU audio, 48kHz sample rate, Synchronous or Non-synchronous, Internal sample rate conversion (via 4 x BNC on breakout cable)
• 16-channel, 24-bit AES/EBU audio, 48 kHz sample rate, Synchronous (via 8 x BNC on optional K3G-Box)

Audio Output Digital

• 16-channel, 24-bit SDI embedded audio, 48kHz sample rate, Synchronous
• 8-channel, 24-bit HDMI embedded audio, 48kHz sample rate, Synchronous
• 8-channel, 24-bit AES/EBU audio, 48kHz sample rate, Synchronous or Non-synchronous, Internal sample rate conversion (via 4 x BNC on breakout cable)
• 16-channel, 24-bit AES/EBU audio, 48 kHz sample rate, Synchronous (via 8 x BNC on optional K3G-Box)

Down-conversion

• Hardware 10-bit
• Anamorphic: full-screen
• Letterbox: image is reduced with black top and bottom added to image area with the aspect ratio preserved
• Crop: image is cropped to fit new screen size

Up-Conversion

• Hardware 10-bit
• Anamorphic: full-screen
• Pillar box 4:3: results in a 4:3 image in center of screen with black sidebars
• Zoom 14:9: results in a 4:3 image zoomed slightly to fill a 14:9 image with black side bars
• Zoom Letterbox: results in image zoomed to fill full screen
• Zoom Wide: results in a combination of zoom and horizontal stretch to fill a 16:9 screen; this setting can introduce a small aspect ratio change

Cross-conversion

• Hardware 10-bit
• 1080i to 720p
• 720p to 1080i
• 720p to 1080PsF

SD to SD Aspect Ration Conversion

• Letterbox: This transforms SD anamorphic material to a letterboxed image.
• H Crop: Will produce a horizontally stretched effect on the image; transforms anamorphic SD to full frame
• SD Pillarbox: Will produce an image in the center of the screen with black borders on the left and right sides and an anamorphized image in the center
• V Crop: Will transform SD letterbox material to an anamorphic image.
