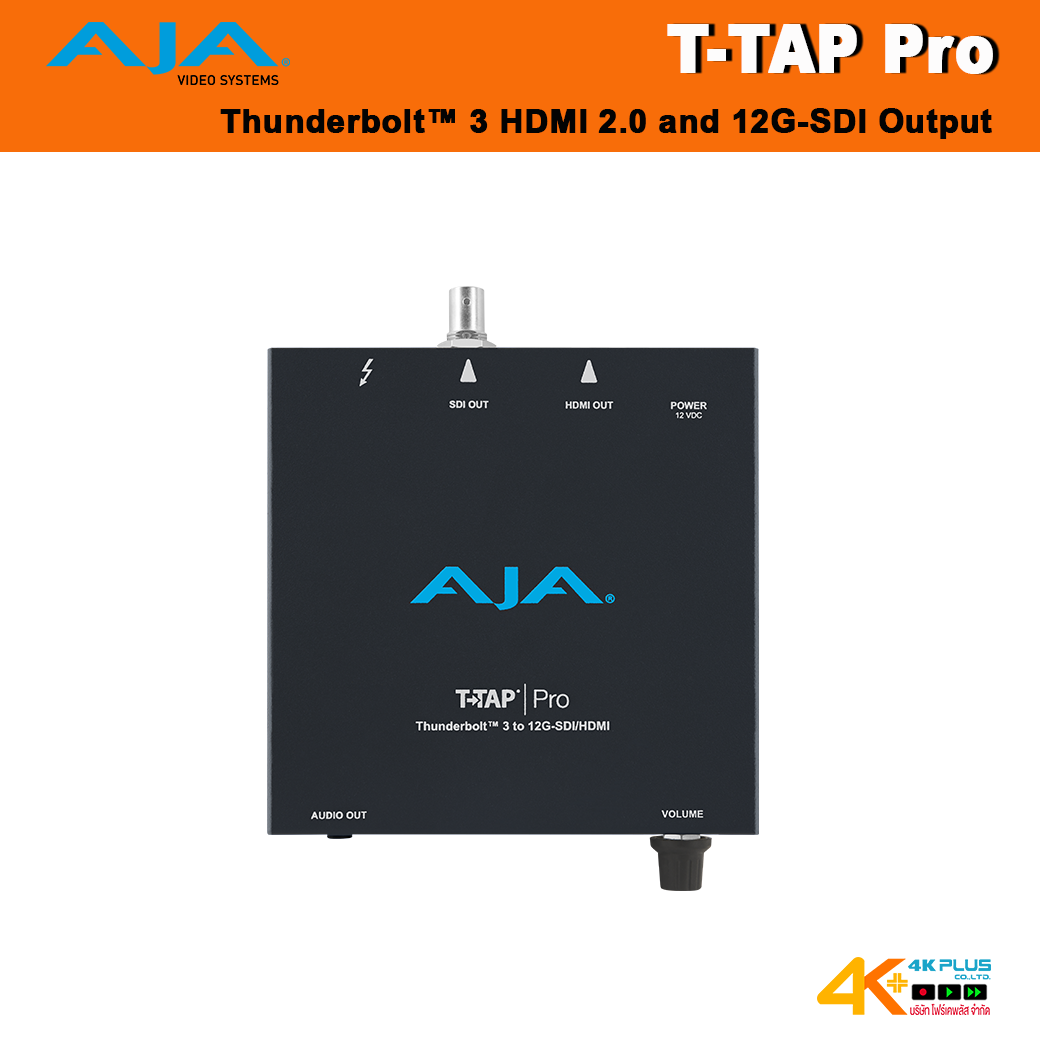

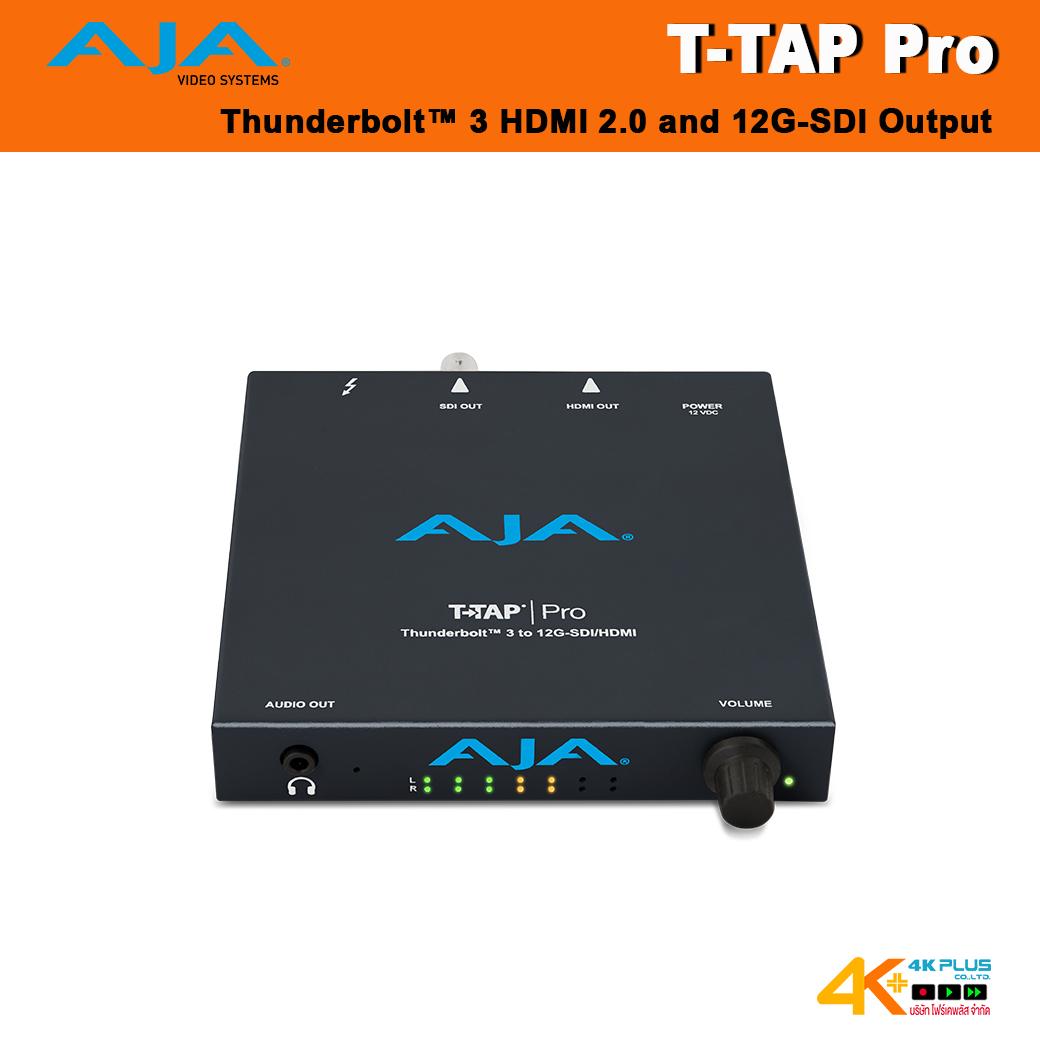

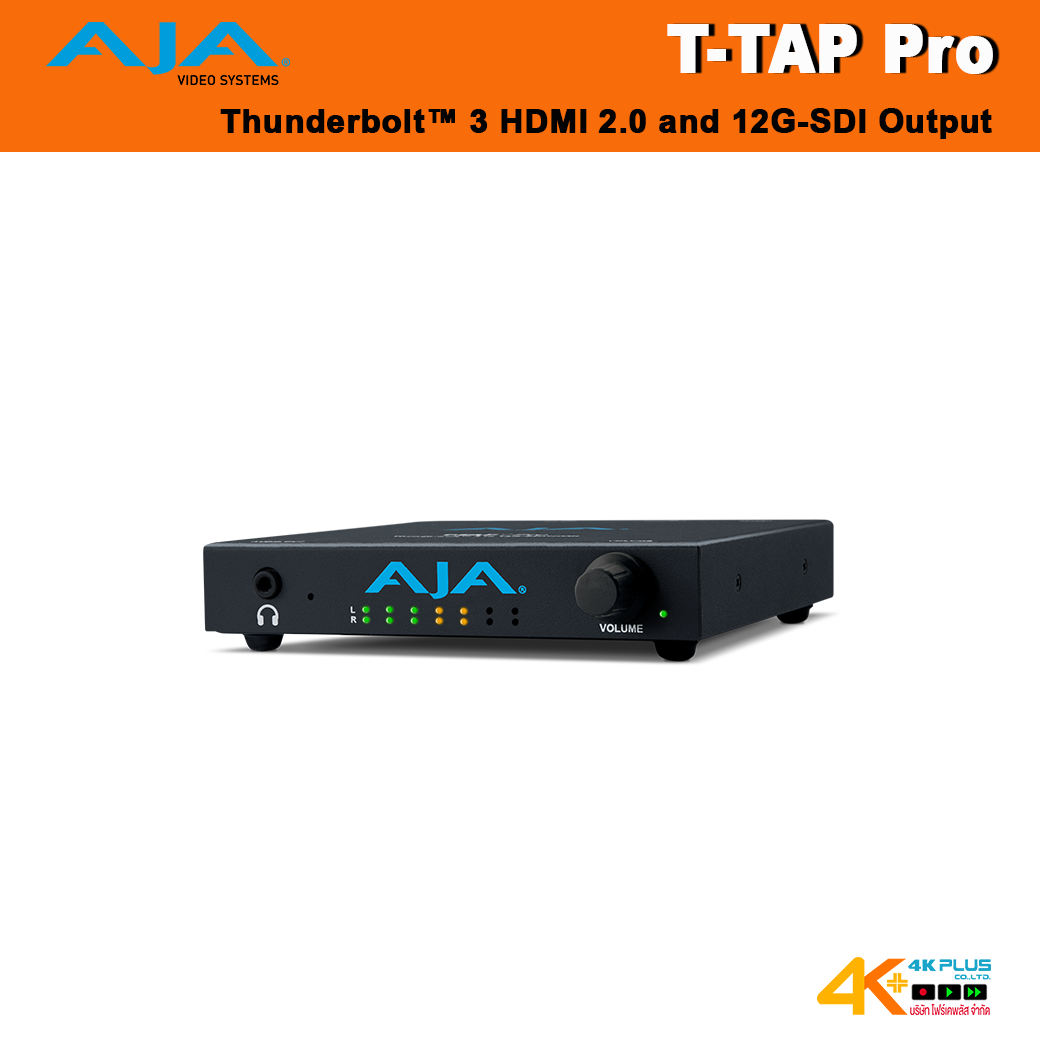

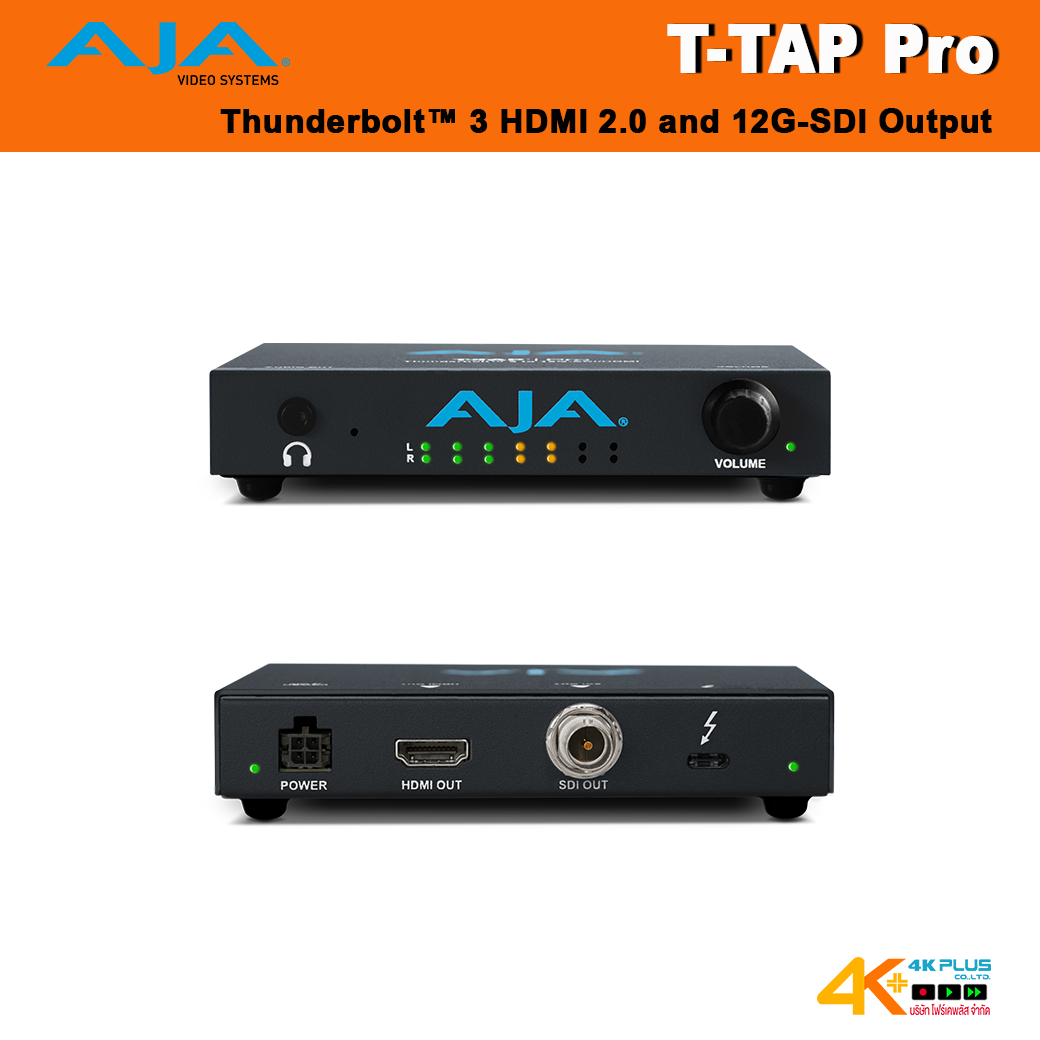

AJA T-TAP Pro Thunderbolt 3 HDMI 2.0 and 12G-SDI Output

• (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
• (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
• (2K) 2048 x 1080PsF 23.98, 24, 25
• (HD) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• (HD) 1080PsF 23.98, 24, 25, 29.97, 30
• (HD) 1080i 50, 59.94, 60
• (HD) 720p 50, 59.94, 60
• (SD) 625i 50
• (SD) 525i 59.94

Note: High Frame Rate and 4K/UltraHD capabilities are dependent on host system attributes. Not all systems and configurations will support all frame rates and raster sizes.• Operating Altitude: <3,000 meters (<10,000 feet)

Video Outputs Digital

• 12G-SDI*, SMPTE-2082, 12-bit*, 10-bit
• 6G-SDI*, SMPTE-2081, 10-bit
• 3G-SDI, SMPTE 425
• RGB 4:4:4 12-bit*, YCbCr 4:2:2 10-bit
• 1.5G-SDI, SMPTE 292M
• Single Link HD-SDI YCbCr 4:2:2 10-bit
• Dual Link RGB 4:4:4 12-bit*, Dual-Link YCbCr 4:2:2 10-bit
• 270 Mbps SDI, SMPTE 259M-C
• YCbCr 4:2:2 10-bit, 8-bit
• HDMI v2.0
• 30/36-bits/pixel, RGB or YUV, 6 Gbps per color component
• 4K, UltraHD, 2K, HD and SD with HFR support up to 60p (4:2:2), 10-bit and 8-bit

*Bit depth support is application dependent. Check with your software manufacturer for compatibility.

HDR

• SDI: VPID signaling for SDR/HDR Transfer Characteristics, Colorimetry and Luminance
• HDMI: HDR10 Support - HDR Infoframe metadata, compatible with HDMI 2.0a/CTA-861.3
• HDMI: HLG Support - compatible with HDMI 2.0b/CTA-861-G

Note: HDR support is application dependent. Check with your software manufacturer for compatibility.

Audio Outputs Digital

• 16-channel, 24-bit SDI embedded audio, 48 kHz sample rate, synchronous
• 8-channel, 24-bit HDMI embedded audio, 48 kHz sample rate, synchronous

Audio Outputs Analog

• 2-channel, 18-bit D/A analog audio, 48 kHz sample rate, unbalanced, using standard 3.5mm jack
• 1.2V RMS full scale digital output level (0 dBFS)

Size (w x d x h)

• 5.0" x 1.0" x 5.0" (127.0 x 25.4 x 127.0 mm)

Weight

• 06 lb (0.23 kg)

Power

• 18W Max

Environment

• Safe Operating Temperature: 0 to 35 C (32 to 95 F)
• Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
• Operating Relative Humidity: 10-90% noncondensing
• Operating Altitude: <3,000 meters (<10,000 feet)
